CASTLEFINN | 146' 2011 Heesen Yachts

CASTLEFINN was built by the famous Heesen Dutch shipyard under ABS Class rules in 2010 and delivered in 2011. The exterior of this 45-meter (146’) aluminum vessel with its sleek hull lines and multi-sized windows is elegant and recognizable as another masterwork from Heesen.

On the initiative of the present owner, all interiors were refitted to look more luxurious, yet comfortable. The keynote of this new design is the combination of white and autumn colors, as well as contrasting different textures and materials. CASTLEFINN has never been chartered so very little wear and tear; the yacht is in perfect condition. The yacht was designed to accommodate 10 guests in 5 spacious cabins, each with an ensuite bath. Four guest cabins (two of them - VIPs) are situated on the lower deck. There is an additional optional stateroom in the sky lounge with a hidden queen-size drop-down murphy bed which makes it possible to have 12 guests aboard. The full beam owner area is on the main deck and includes a master cabin, master study, an ensuite bathroom with his and hers partitions, and a wardrobe closet big enough for extended cruising.

Just aft of the owner's stateroom is the main salon and dining room integrated with an aft lounge, a magnificent semicircular seating area with a panoramic view that has access to the aft deck. (For a complete sequential view of all the features and accommodations of CASTLEFINN please review the walk-through video link on this listing. The sundeck features an entertainment bar animated by a $100,000 sound system with all the amenities found in a galley including a dumb waiter useful to replenish food and drinks from the galley deck without disturbing the guests.

The Jacuzzi and lounging area are aft on the sundeck. On the lowest deck is a garage for storing a tender and water toys which can easily be modified as a beach club for an owner who would rather tow a tender. Additionally, in the garage area, there is an engineer's cabin with an ensuite bath. The 45m Heesen is extremely spacious (just below 500 GT) and is a leader among other yachts in this class.

Powered by two MTU 16V 4000 M90 diesel engines, this semi-displacement superyacht has a cruising speed of 20 knots with a top speed of 23 knots which is an excellent speed for a 146-foot yacht. At an economical speed of 12 knots with zero-speed stabilizers she has the range of a full displacement yacht (3500 nm). CASTLEFINN has the best of both worlds, speed, and range.

In 2021-2022 over 2 million dollars was spent to modernize and improve the electronics, mechanical equipment, and interior décor. The current owner went through the entire yacht and fixed or renewed all systems aboard to have years of trouble-free boating. The owner will consider a trade with a late model 120-125’ yacht.

Lower Deck

•t2 x Double cabins with en-suite bathroom

•t2 x Twin cabins with en-suite bathroom

•tCrew accommodation

•tCrew mess

•tEngine room

•tTender garage and toy storage

Main Deck

•tFull beam Owner's stateroom with large king-size bed, walk-in wardrobe, lobby office and bathroom with a shower and a bathtub

•tSpacious salon with lounge and dining area

•tDay toilet

•tMain Galley

•tPantry

•tExterior aft deck lounge area

Upper Deck

•tSky lounge cinema which can be converted into a 6th cabin

•tBathroom with toilet and shower

•tExterior aft deck seating area with shading option

•tExterior dining table for up to 12 with large oval table and semi-circular sofas

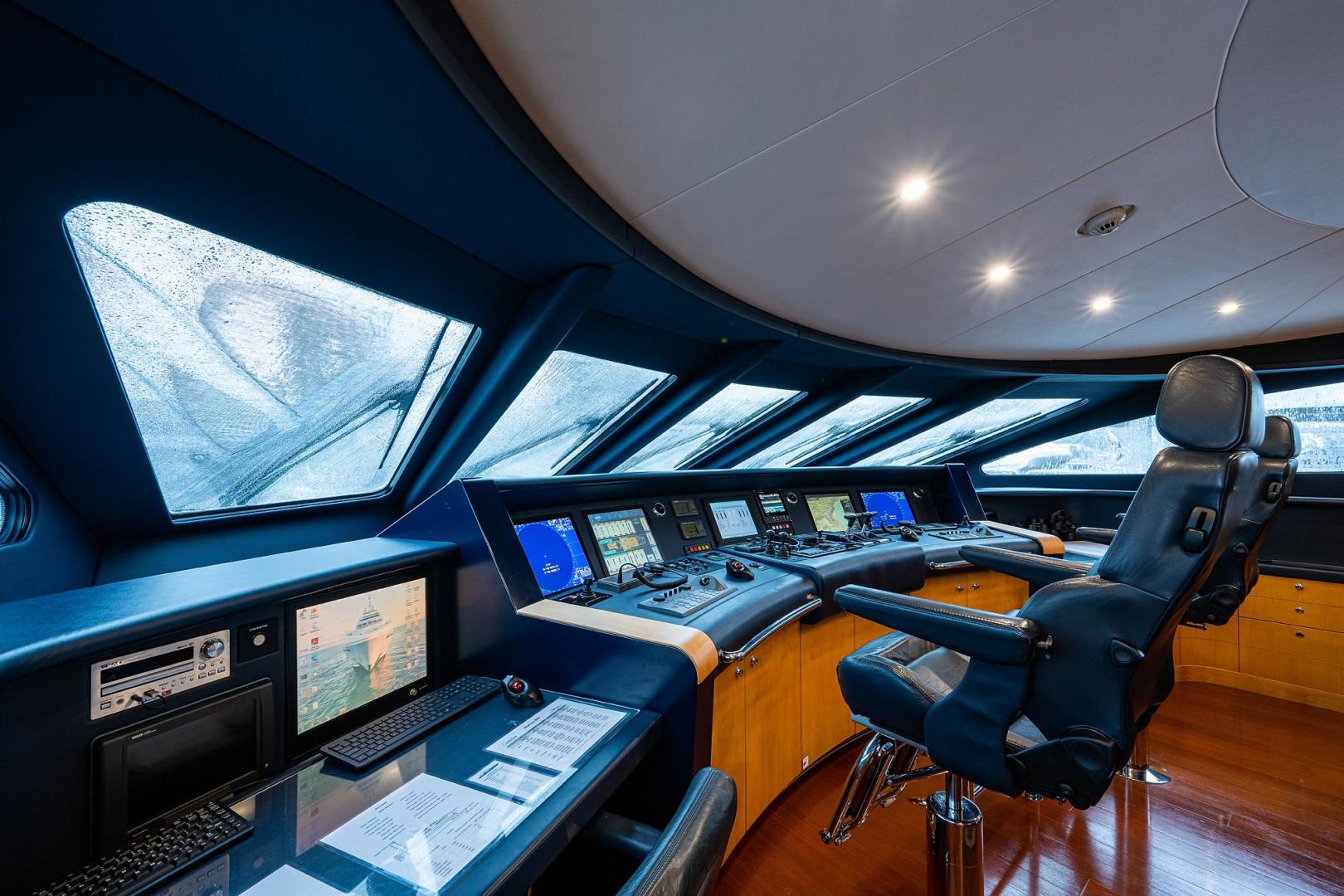

•tWheelhouse

•tServer room

•tExterior seating area on the foredeck

•tNicely hidden workshop and storage on the foredeck

Sun Deck

•tSunbathing set-up aft

•tJacuzzi 1200L with heating and hydromassage

•tBar

•tDining table for up to 8

•tControl station

Captain & Crew

•t1 x captain’s cabin with en-suite bathroom

•t4 x 2-Bunk crew cabins on lower deck, forward

•t2 x MTU 16V4000 M90 diesel engines, 3.647hp (2,720kW at 2,100 RPM)

•tEngine hours: 3,528 (March 2023)

•tGearboxes ZF, model BW 7550 P (PTO axial, vertically off-set)

•tDirect Drive

•t2 x Schaffran propellors - five 1,380 mm blades

•t2 x 99 kW John Deere 50 Hz generators

•tElectricity Three phase, 230/400 Volts, 3 wire, 1,500 rpm

•tBatteries 5 in total, various types, GMDSS, emergency; Charges 8 in total, make Mass, different types

•tWater Maker 2 x HEM type HEM 25/1400, new membranes in 2018

•tToilet System Jet vacuum system

•tSewage Treatment Hamann A6

•tFuel Separator Westfalia type OSD 2-02-137

•tStabilizer VT Naiad Marine system 820, stabilization at anchor and underway

•tBow Thruster HRP 1000 – 80 kW hydraulically driven

Shore Power

•t400 Volts, 3 phase

•t1 x for TV/Radio

•t1 x for Telephone

•t1 x for Freshwater

Hydraulics

•t1 x Main unit for transom door & gangway, side folding ladder

•t1 x Unit for fore-crane operation

•t1 x Unit for steering system

Air Conditioning

•tHeinen & Hopman

•t2 x Chiller Units

•t2 x Sea-water pumps

•tTemperature controlled by thermostats fitted in each room

Ventilation

•t2 x ventilation ribs on both sides of the engine room

•t2 x ventilators/extractors on the starboard

Water System

•t2 x Electric hydrophor Lowara

•tUVA treatment installation

•tSilver ionizing system

•tCarbon filter

•tSoftener

Hot Water

•t2 x Electric boilers 200L each

•tCircular system all over the boat

•tRadar Furuno Black box x band radar, 12 kW with 6,5 scanner, type FAR-2117BB

•tCompasses Furuno Satellite Compass/GPS; Navigat X MK1 C.Plath Gyrocompass

•tGPS MX 420 Navigation System

•tAutopilot Navipilot 4000

•tDGPS Receiver AP NAVIGATOR MK12

•tAIS Furuno Universal AIS FA - 150

•tNavtex Furuno Navtex NX-700

•tDepth Sounder Furuno dual frequency color video, type FCV-1100L

•tWind/Speed Log 3 x B&G Hydra-2000

•tElectronic Chart Transas NS-3000

•tBNWAS Watchkeeper

•tWeather Station 4 x Furuno RD-30 repeater crew mess/captain cabin/engineer cabin/garage

•tShips Computer Network Heinen & Hopman

•tFog Horn Kahlenberg model T1

•tSearchlights 2 x ARC Electronics RCL-600

•tWindscreen Wipers 5 x marine type windscreen wipers Hollex 235 KS

Monitoring

•tMain monitoring system in wheelhouse

•t3 x Fixed cameras, 1 x each side & 1 x aft

•t1 x Motorized camera in engine room

•t1 x Night vision camera mounted on Mast NUTi

•tSatcom SeaTel

•tInmarsat-C Sailor TT-3606E

•tLoudhailer 1 x Icom IC-M421 simplex/duplex VHF crew mess

•tRaytheon RAY-430

•tAV System Plex Media Server with Philips Pronto control panels

•tTelephone System 20 x portable phones Gigaset

VHF

•t2 x handheld VHF radio Jotron TR20

•t1 x Sailor simplex/semi-duplex RT-5022

•t1 x Sailor duplex VHF station RT-4722

•t2 x Icom simplex/semi-duplex VHF station for both wing stations IC-M59

Internet

•tVSAT Seatel

•t1 x D-link DWR-921 modem 4G Mobile Internet

•t10 x internet signal booster throughout the boat

•tAnchor Capstan 2 x electric stainless steel Staalart CAS23-17,5.ED

•tBollards 8 x stainless steel bollards on the main deck, 2 x on the swim platform

•tSide Boarding Ladder 1 x electric/hydraulic operated, stainless steel and wood

•tSwim Ladder 1 x Stainless steel swim ladder

•tGangway Hydromar, 5,95 meters length, hydraulic

•tElevator 1 x Lodige Dumbwaiter from main deck to upper deck

Anchor Chains

•t2 x 150 m chains Ø 17,5 mm

•tControl box for 230V/200VAC 50 Hz 3ph-24VDC for anchor winch dual direction dual speed

•t2 x stainless steel chain stoppers mounted on baseplate of the anchor winch

•t2 x tensionless square chain roller

•t2 x stainless steel devil claws

Crane/Winches

•t1 x hydraulic foredeck crane Hydromar

•t2 x winches for tender in the garage

Entertainment System Video

•t5 x Apple TV in each cabin

•t5 x Remote Fusion stereo systems

•tPlex Media Server with Philips Pronto control panels in each cabin and salon

•tSatellite TV & Internet

Entertainment System Audio

•tInternal Bluetooth network

•tPlex audio server

•tIpod airplay

•tGoogle Chromecast audio

Guest Double Cabins

•t2 x Samsung 27” LED 7 series

•t1 x Philips Pronto control panel

•t10 x built in speakers (5 in each cabin)

•t2 x Apple TV

Guest Twin Cabins

•t2 x Samsung 32” LED Full HD

•t1 x Philips Pronto control panel

•t10 x built in speakers (5 in each cabin)

•t2 x Apple TV

Main Salon

•t1 x Samsung 55” LED Full HD

•t1 x Linn Classik Movie System

•t1 x Apple TV

•t1 x Philips Pronto TSU9800 docking station

•t1 x Philips Pronto control panel

•t7 x inbuilt ceiling speakers

Master Cabin

•t1 x Samsung 55” LED Full HD

•t1 x Philips Pronto control panel

•t9 x inbuilt ceiling speakers

Skylounge

•t1 x Samsung 32” LED Full HD

•t1 x Philips Pronto control panel

•t2 x inbuilt ceiling speakers

Sundeck

•t4 x JL audio external speakers

•t2 x JL audio subwoofer

Crew Mess and Crew Cabins

•t1 x Sony 32”

•t6 x inbuilt ceiling speakers

Captain’s Cabin

•t1 x Scepter 22” LCD

•t1 x inbuilt ceiling speakers

Deck

•t12 x inbuilt ceiling speakers JL audio (4 main deck, 2 foredeck, 2 upper deck, 2 sun deck)

Galley & Pantry Equipment

•t1 x Gaggenau oven/grill

•t1 x GIGA ceramic cooktop

•t1 x GIGA professional oven

•t1 x GIGA Tapenyaki Griddle

•t1 x Miele dishwasher

•t2 x Foster Gastro refrigerator 600 litres (compressor in engine room)

•t1 x Foster Gastro freezer 600 litres (compressor in engine room)

•t1 x Liebher Comfort refrigerator 80 litres

•t1 x Eurocave wine cooler for 175 bottles

•t1 x Hoshizaki Ice Maker

Laundry

•t2 x Miele washer professional

•t2 x Miele drier professional

Public Areas

•t2 x Frigonautica fridge in Owner's cabin and lowerdeck desk corridor

•t1 x GAMKO professional bar fridge 150 ltrs in Sky lounge

•t1 x Hoshizaki icemaker in Sky lounge bar

Exterior Decks

•t2 x Frigonautica fridge on the sundeck

•t1 x Hoshizaki icemaker on the sundeck

•t1 x Novurania 650, 190 HP, inboard Volvo Penta D220 (in the garage)

•t1 x Novurania 360TR, outboard Yamaha Four Stroke 20HP (on the aft deck)

Firefighting

•tFire detector Minerva Marine T2000 with control station in the wheelhouse

•t3 x CO2 system in the engine room and galley

•t25 x portable powder fire-extinguishers

•t5 x foam fire-extinguishers

Safety

•t4 x Zodiac life rafts 12 pax each

•t4 x lifebuoys

•t28 x SOLAS inflatable lifejackets

•t25 x SOLAS immersion suits

•tSafety Plan approved by MCA

•t1 x 406 EPIRB

•t2 x TRON 9Ghz SART

•t1 x rescue boat Novurania 360TR

•tPainted bottom

•tReplaced all the batteries

•tRebuilt starboard Gen Motor

•tRebuilt port Gen 368 hours since rebuild at 10,379 hours

•tReplaced Tool chests

•tInstalled onboard monitoring system

•tReplaced Starboard Radar

•tReplaced KVH antenna

•tReplaced VSAT antenna

•tReplaced Flybridge monitor

•tInstalled new Nav software

•tReplaced Furuno Sounder

•tReplaced pilot house VHF Radio

•tReplaced Nav computer and mouses

•tReplaced GPS

•tInstalled K4 antenna

•tReplaced Navigation Gyro compass

•tInstalled Dish Receivers

•tInstalled K4 TV remotes

•tReplaced Main Salon TV

•tReplaced Crew quarters bedding

•tReplaced Interior & Exterior cushions

•tReplaced exterior covers

•tReplaced exterior sun screens

•tInstalled 3 remote Fusion stereo systems

•tRepaired Ice Makers

•tReplaced Hull/fuel tank plating

•tRepaired oil leaks on Naiad system

•tRepaired A/C

•tRepaired Hamans system

•tRepaired Fuel polisher

•tRepaired and descaled black water lines

•tCleaned and repaired all fuel tanks

•tCleaned Black water tank

•tReplaced crew quarters carpet

•tCleaned all a/c ducts

•tReplaced hydraulic steering lines

•tRepaired Stern thruster

•tReplaced 3 air handlers

•tRepaired Starboard Anchor capstan

•tRepaired Garage door seal

•tReplaced Life raft release cables

•tReplaced Life Rings/Lights

•tReplaced some fire equipment

•tUpdated Safety plan

•tConducted Converter Maintenance/Repair

•tReplaced davit cable

•tRepaired Freezer/Refrigerator

•tReplaced deck lines

•tRepaired horn

•tRepaired crew dishwasher

•tRepaired washers

•tFDDA repair of main engines

•tNew Injectors on both engines

•tWax and Buff exterior

Hull

•tFully new paint hull in cream color

•tTeak decks renewed (100%)

•tChange deck lights to 120 dots LEDs

•tAntifouling Trilux 33 mic International – 4 layers at the ship’s bottom

Tech

•tPLEX media server installation

•tNew Gigaset phones

•tAll new TVs (Samsung LED Full HD)

•tNew audio and subwoofers installed on the sun deck

Machinery

•tWater pumps replacement

•tNew water purifying system: silver water ionizer, carbon filter, water softener

•tMTU service every 250 hours

•tGenerators service

•t12 x bilge drying system valves change

•tNew emergency bilge pump

•tWater makers serviced

•tNew compressors for Lowara freezer

•tNew freshwater pumps

•tNew sea chest baskets

Exterior

•tNew sound system installation (JL audio sound and bass)

•tNew awning added to the sundeck (extending up to 2.7 meters)

•tExterior furniture re-upholstered with Sunbrella fabric

•tNew teak exterior armchairs with Sunbrella cushions

•tNew marble tables at the bar on the sun deck

Interior

•tAll new carpets made by silk, wool & bamboo fibers (by Oliver Treutilein, Germany)

•tNew Italian custom-made furniture by Ludovica Masceroni (sofas in salon and master bedroom, armchairs in salon and skylounge, chairs in the dining area)

•tNew lamps by Ludovica Masceroni

•tNew custom-made wall panels in salon, master bedroom and guest cabins

•tChemical cleaning of curtains and mattresses every year

•tMarble polishing in all bathrooms

•tNew furniture at WC and showers

•tNew LED lights

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
