MOTOR YACHT 100' 2013 IAG
List at
$5,500,000
For Sale

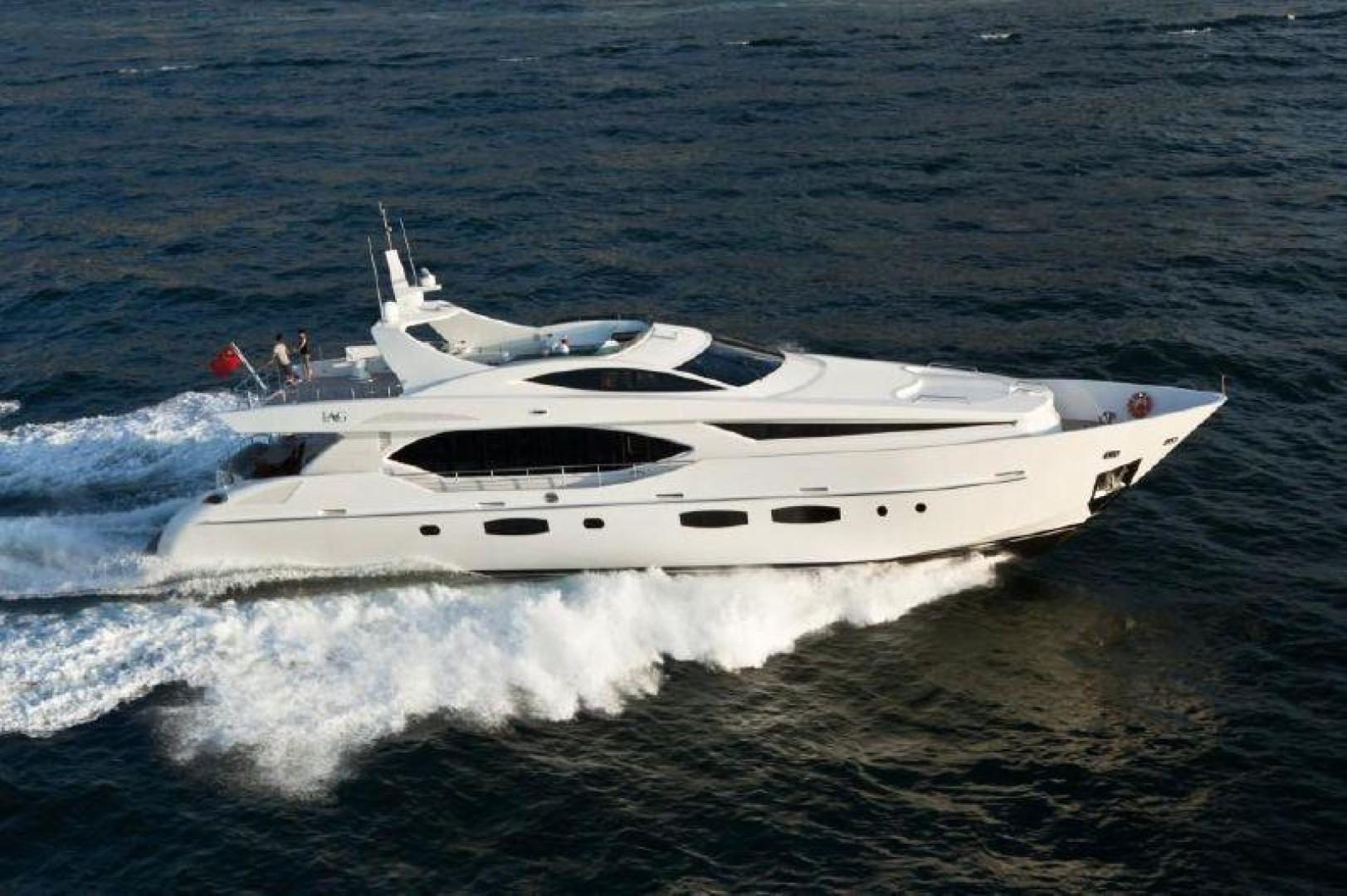

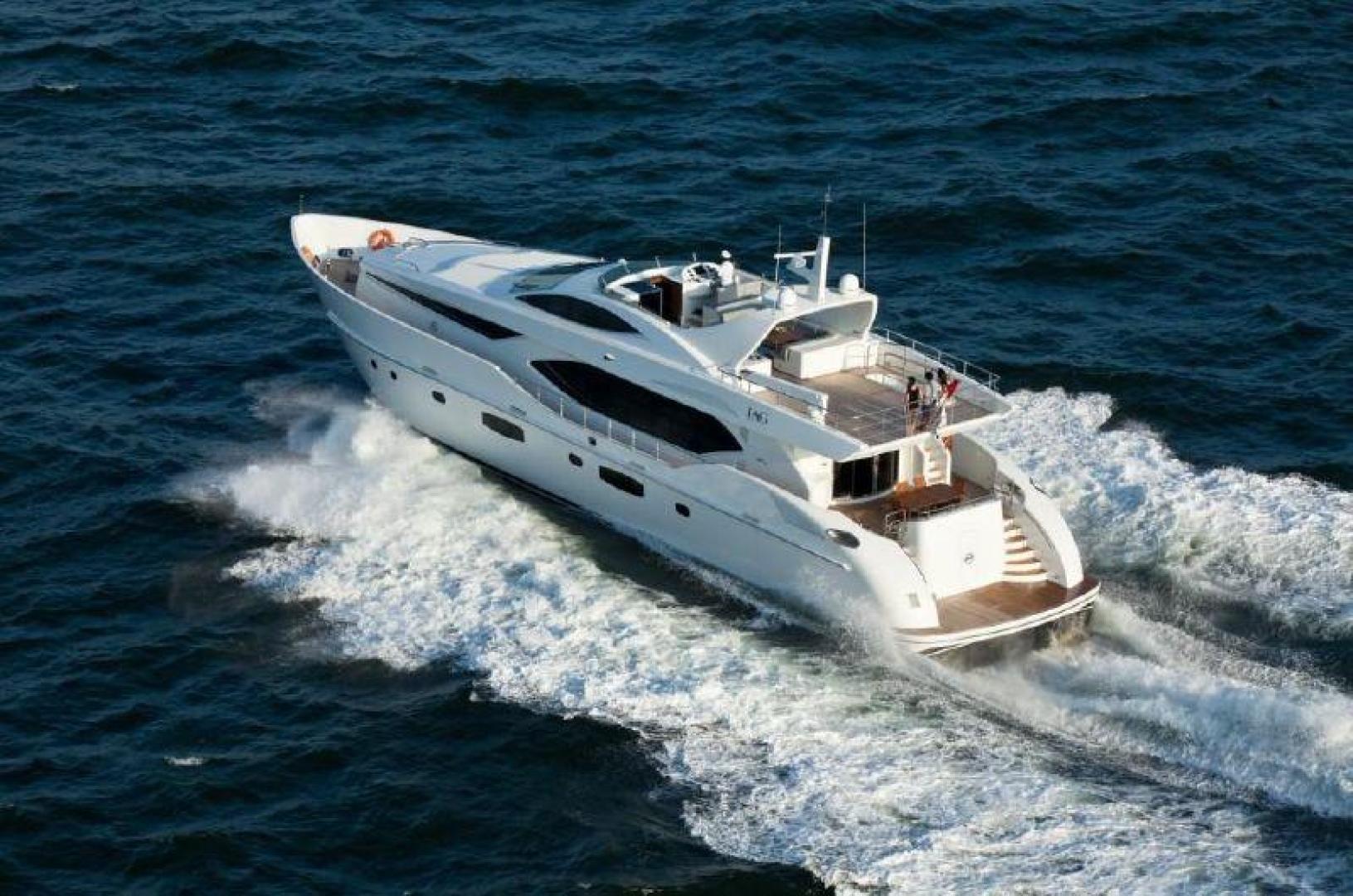

A rare opportunity to take immediate delivery of a IAG 100 Electra series at an exceptional price.
She is the creative product of YD&AS, an Italian yacht design and architectural services firm, applying a beautiful Italian styling to combine quality and current fashion into a very comfortable and detailed perfection. In conjunction, the astonishing talents of IAG's international interior department have enriched the Electra with luxurious interiors and delicate touches.
General
LOA:
100' (30.0 m)
Beam:
22' (6.8 m)
Hull Material:
Fiberglass
Location:
Hong Kong, China
Build Year:
2013
Builder:
IAG
Type:
Power
Capacities
Fuel Capacity:
3,963 gal
Fresh Water:
370 gal
Performance
Cruising Speed:
22.0 Knots
Max Speed:
25.0 Knots
Engines
Engine 1
Make:
MTU
Model:
12V2000 M93
Type:
Inboard
Power:
1800.00 hp (1342.26 kW)
Fuel Type:
Diesel
Hours:
0 h
Engine Location:
Port
Engine 2
Make:
MTU
Model:
12V2000 M93
Type:
Inboard
Power:
1800.00 hp (1342.26 kW)
Fuel Type:
Diesel
Hours:
0 h
Engine Location:
Starboard
Construction
Hull & Deck superstructure is molded fiberglass with structural coring built to RINA engineering specifications; stringers are fiberglass encapsulated foam.
The hull outer layers of fiberglass are laminated with vinylester resin up to the core.
Hull side foam core sandwich construction, hull bottom solid fiberglass.
Structural bulkheads are foam core bonded to the hull.
Propellers located in a tunnel for reduced draft.

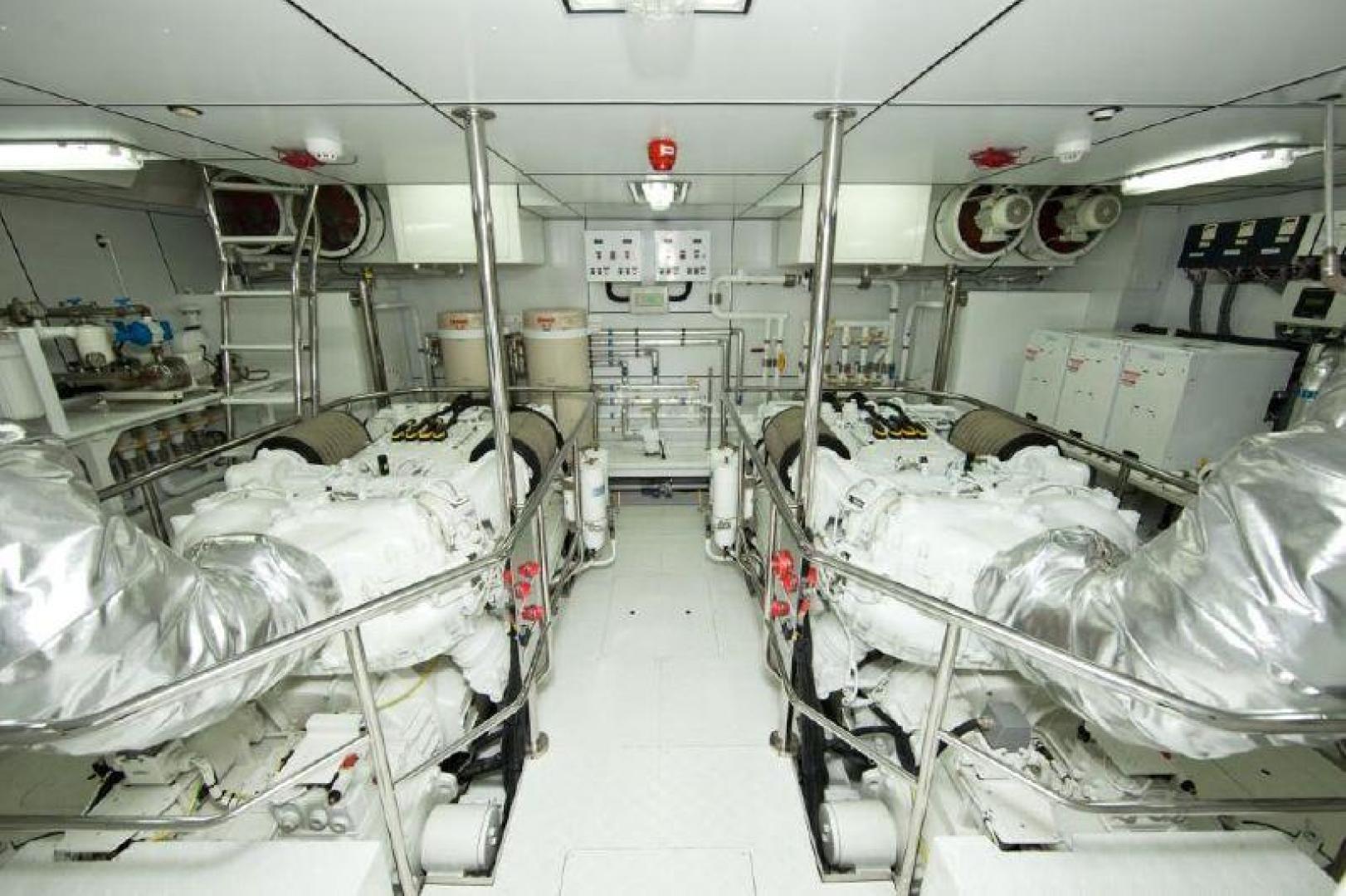

Mechanical & Engine Room Equipment
The Electra 100 is powered by twin MTU M93 main engines offering a maximum speed of 26 knots as well as economically cruising to a range of 700 nautical miles at 21 knots. Maximum Range can be attained at 10 knots for and approximate 2000 Nautical Miles.
- Twin MTU 12V2000M93 1800hp/1340kw @ 2450rpm’s
- Reduction gear ZF 3050A with a gear reduction of 2.52:1
- Electronic controls in pilothouse& flybridge, engine room start/stop panel with engine supplied panel
- Propeller shafts high grade stainless
- Struts: high test bronze faired for efficiency with cutlass bearings
- Bronze Nibral propellers
- Rudders semi-balanced positioned on the transom control by two hydraulic pistons
- CMC hydraulic 50hp bow thrusters with controls at 2 stations
- Cruisair 216,000 BTU chilled water air conditioning with reverse cycle heating with air handlers & temperature controls in each room
- Fresh air makeup system
- Engine room ventilation system
- Lube tank, 116 gal / 440 liters new & 116 gal / 440liters used
- Power steering with electric AC hydraulic pump
- Underwater exhaust with high quality stainless steel risers
- Bilge high water alarm system
- Fire extinguishing system with manual & automatic discharge, engine shutdown/override system& discharge alarm
- Fuel water separator filters for main engines & generators
- Fiberglass integral fuel with stainless steel day tanks with sight glass & monitored
- Air compressor 88 liters per minute at 100 psi/7bar
- Ceiling & walls perforated white aluminum with the panels
Plumbing
- Integrated fresh water tank
- Two (2) 32 gallons (120 liters) hot water tanks
- Integral fiberglass holding tank with dockside & overboard discharge systems
- Electronic tank monitoring system
- Bilge high water alarm system monitored at the ships monitoring system
Electrical
- Two (2) 40kw Kohler generators with sound shield
- 24 volt engine start batteries; four (4) 8D’s
- House battery bank: Vision brand marine batteries with 400 amps hours at 24volt.
- 24 volt generator start batteries; two (2) for two generators
- 24 volt emergency batteries 200amp hours at 24 volt
- 12 volt/24 volt DC & 220volt / 380 volt 50hz AC electrical systems
- 12 volt & 24 volt Mastervolt battery chargers with isolation system
- One (1) Glendenning Cablemasters with 100’ of 100amp shore power cable
- Electrical distribution & control panels with (magnetic) circuit breakers, amp meters & volt meters
- 220 volt outlets with GFI’s in heads, galley, heads & exterior outlets.
- Internal bonding system with zinc anode protection. Alarm system; main engines & bilge alarms
- Electrical switch plates, outlets, jacks will all be Vimar style with 2 way where area of double entry & dimmers all to be provided as, all per lighting plan& electrical plan
- Lights which feed the DC separate circuits can be used as emergency lighting so that it may be used while at anchor.
Electronics
- Raymarine 4kw 48” HD digital radar.
- One (1) Raymarine 15” display for flybridge helm.
- Two (2) Raymarine 17” color display.
- Raymarine RS125 PLUS GPS.
- Raymarine Ray55 VHF radio.
- Two (2) McMurdo, R2 handheld Gmdss VHF radio.
- Raymarine 45STV satellite television system.
- Raymarine dummy dome for future equipment.
- Two (2) G-series processor module row version.
- Electronic ships monitoring system; tanks, bilge pumps high level, smoke detection, ER ventilation, navigation lights.
- Speed log & Echo sounder system.
- Two (2) ST70 multi-function instruments.
- Two (2) magnetic compass.
- McMurdo E5 EPIRB.
- Raymarine AIS500 Class B transceiver & AIS system with GPS.
- McMurdo S4 SART.
Pilothouse

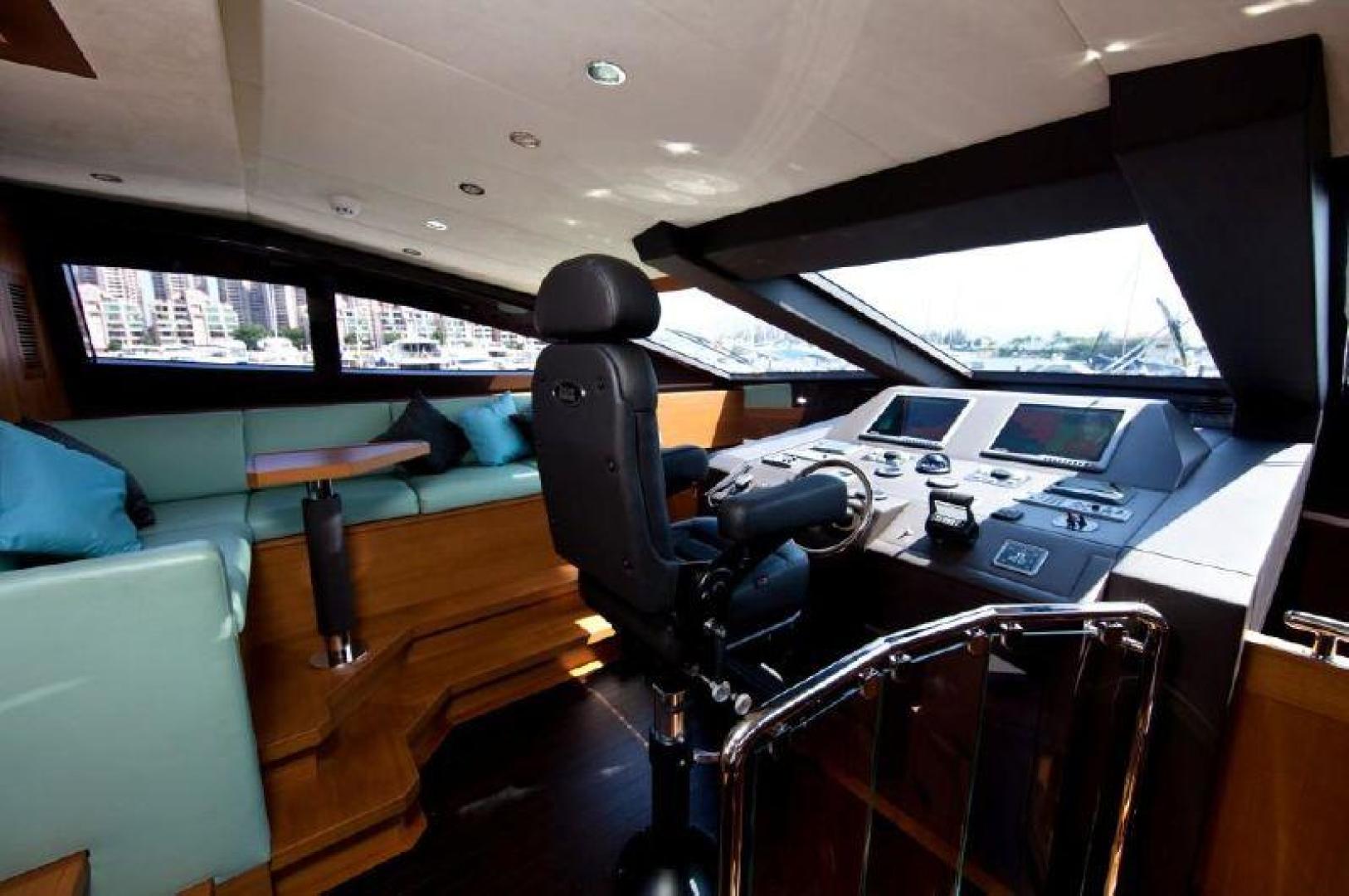

Forward of the main salon is a fully equipped helm station and L shaped settee seperate allowing your guest to be involved with the captain. Access aft up to the Sundeck and Fly bridge.
- Teak cabinetry
- Vinyl headliner
- Wenge wood flooring
- Overhead lighting with mood lighting
- One (1) Lebroc helm chair with adjustable pedestal
- L shaped raised settee with pedestal mount table
- Helm station with all electronics custom install into low profile console
- Complete electronics package
- Kahlenberg dual air horn, air provided by Kahlenberg compressor
- Searchlight SL970 with two (2) station controls, halogen 400,000 candlepower
- Marine windshield wipers, fresh water washer
Main Salon

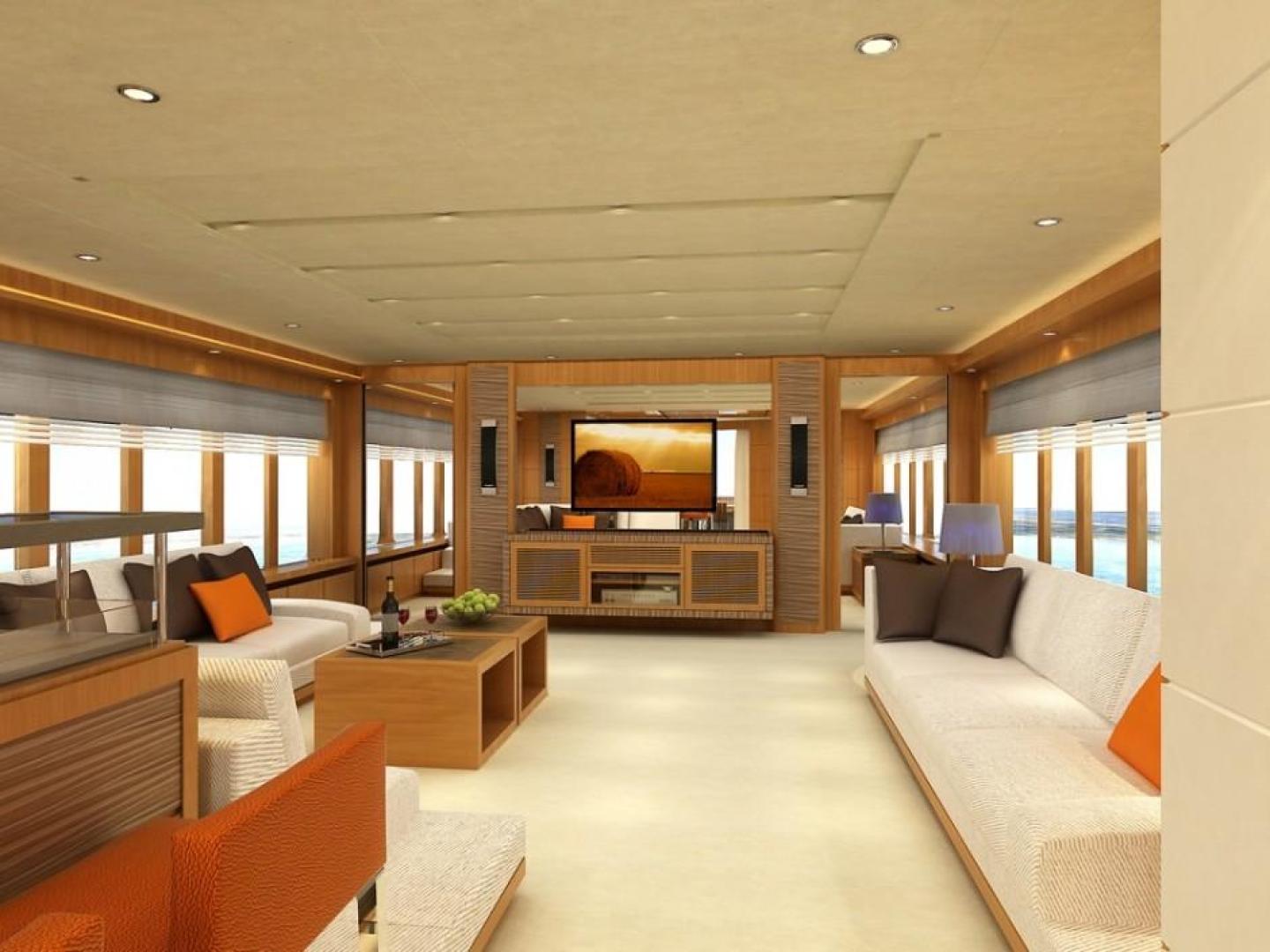

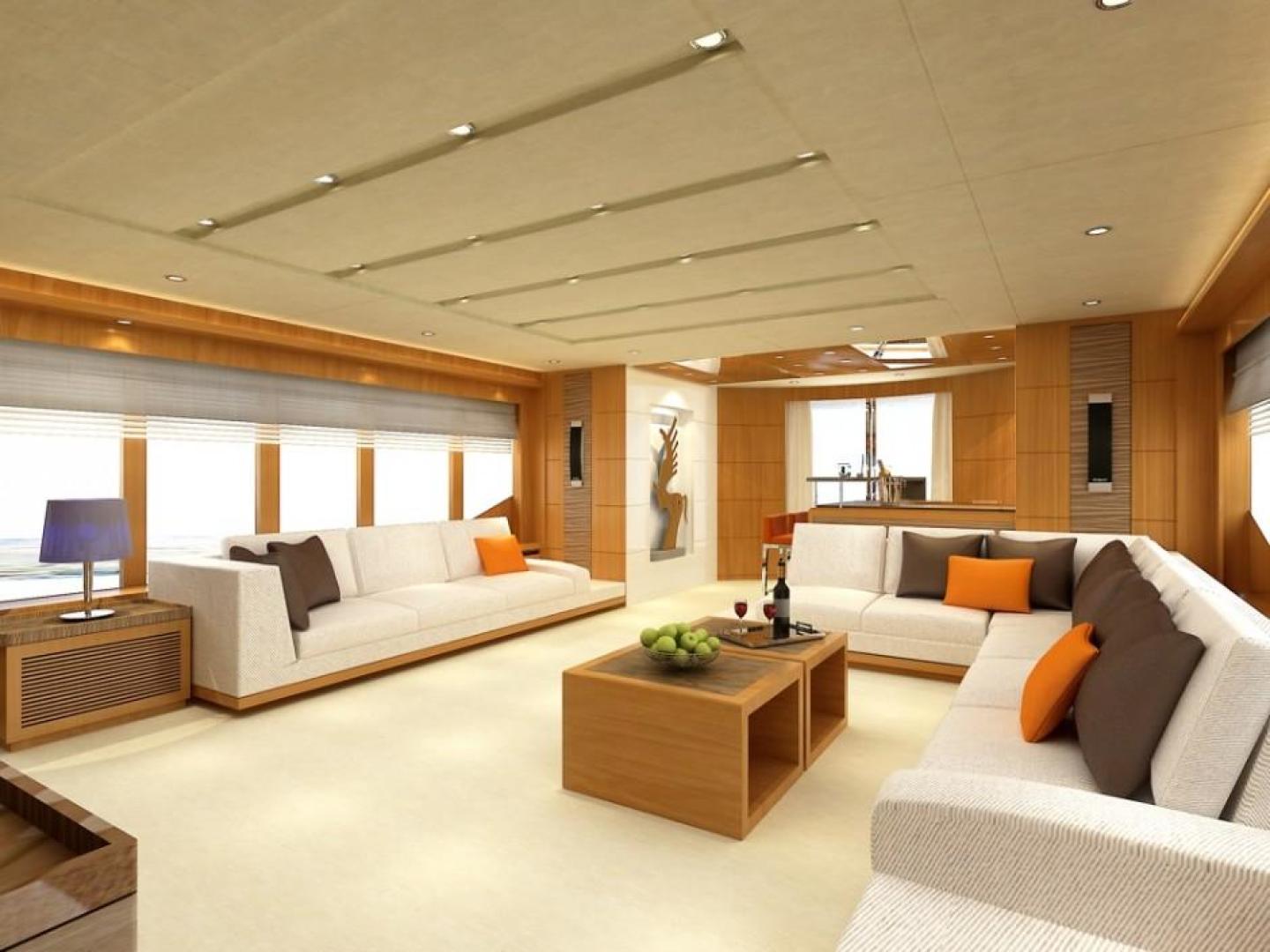

Entering the main salon from the aft deck you will see a full service bar, built in sofas on port and starboard side, faltscreen TV and large windows offering plenty of room for enternaining.
- Teak cabinetry
- Vinyl & Alcantara headliner
- Overhead lighting with mood lighting, lamps
- Maple wood flooring
- Two (2) custom sofas with cocktail tables& end table
- Entertainment center with Sony 55” flat screen TV with sat-receiver, surround sound sub-woofer, iPad wireless control & play 5.1 Ch. home cinema with apple TV 2 Karaoke, microphone kit included, play & control by iPad
- Tinted windows with privacy blinds & window treatments
- Stainless steel aft sliding door
Day Head Main Deck
- Teak cabinetry
- Paint headliner
- Overhead lighting with mood lighting, all per lighting plan
- Teak & paint wall covering
- Light weight granite counter tops with countertop basin
- Grohe designer towel bars, facets & paper holders
- TECMA heads
- Medicine cabinets with mirror
- Teak flooring

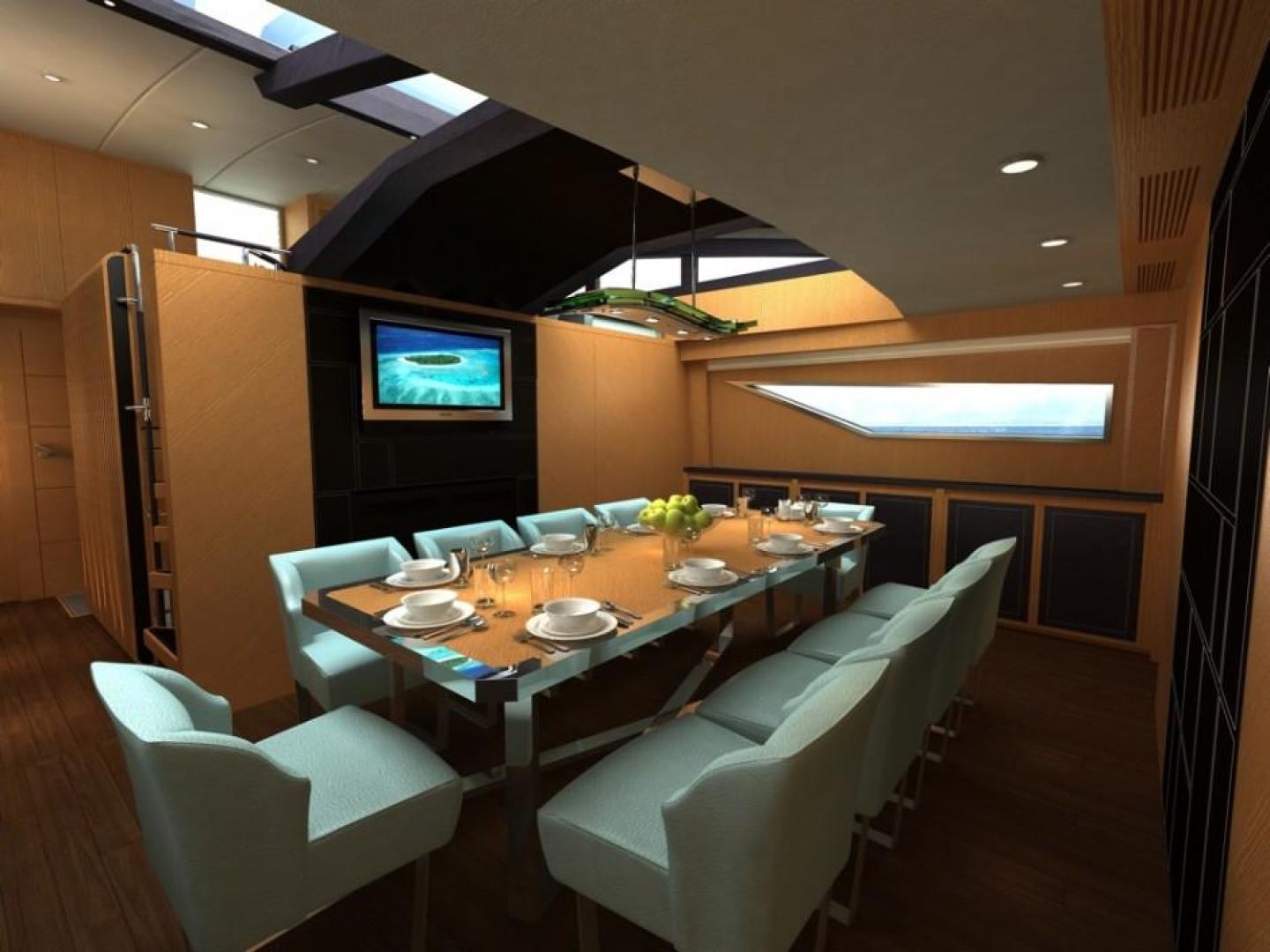

Dining
- Teak cabinetry
- Alcantara headliner
- Overhead lighting with mood lighting, all per lighting plan
- Walnut wood flooring
- Custom built dining table with ten (10) dining chairs
- Overhead hidden speakers with volume control
- Sony 40” flat screen TV with sat-receiver
- DVD with HDMI port & iPad dock
Galley
- Bamboo cabinetry
- Paint headliner
- Overhead lighting all per lighting plan
- Corian counter tops
- Stainless steel sink, under-mount
- Grohe quality fixtures
- Cabinets with roller glide drawers & sea lock hardware
- Two (2) SIEMENS KI38SA50IE(s-line) Refrigerator
- Miele DA 6290 W cook hood
- Miele H460 BP Oven
- Miele M8261-1Microwave
- Miele M8261-1 Dishwasher
- Miele KM6382 cook top
- PVC flooring
- Two (2) overhead speakers

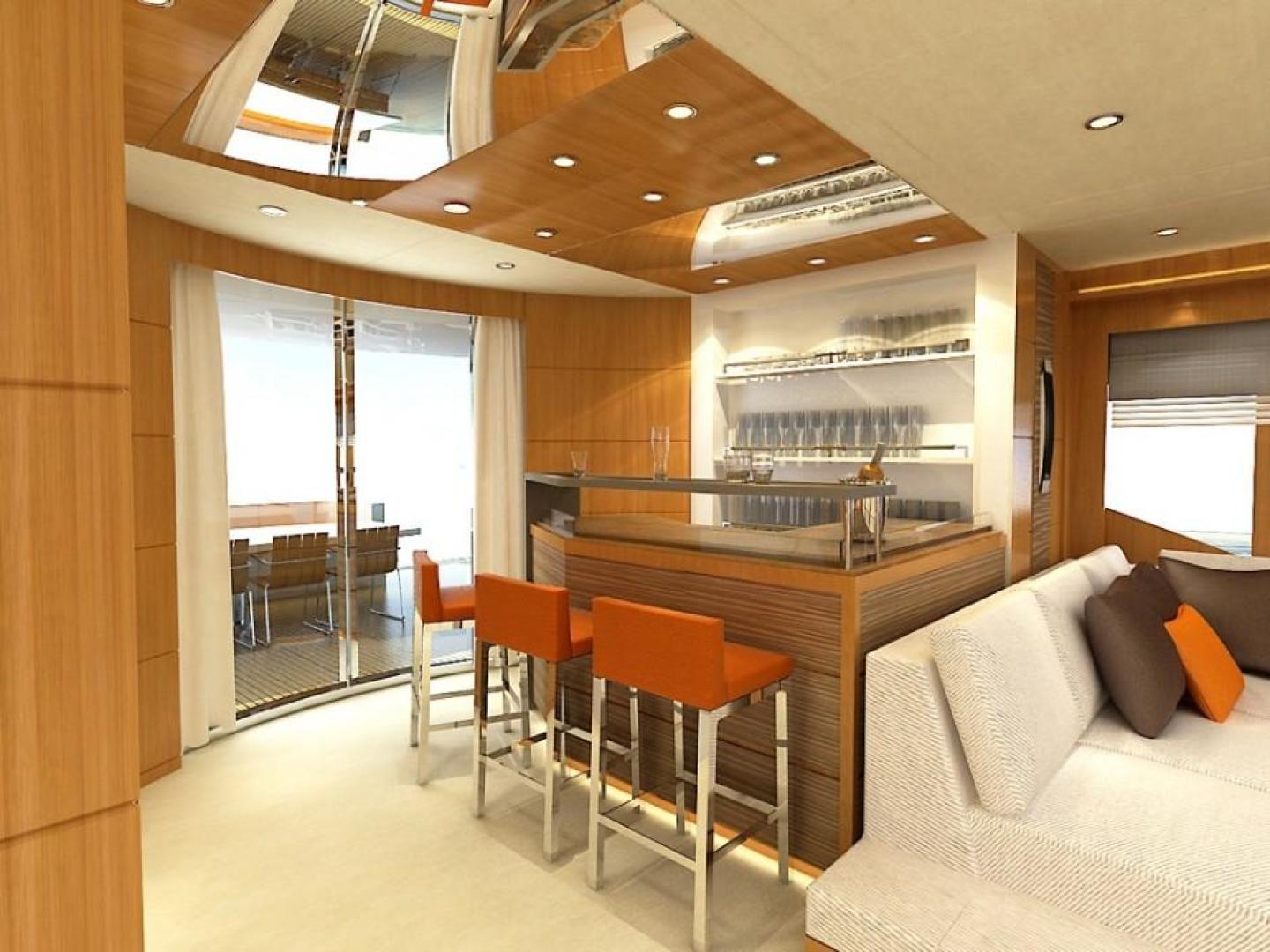

Bar
- Bar with light weight jade granite& raised glass top
- Under counter mounted stainless sink
- Teak cabinetry
- Vinyl headliner
- Maple wood flooring
- Overhead lighting with mood lighting
- Refrigerator
- Ice Maker
- Bottle & glass storage
- Three (3) bar chairs
Master Stateroom

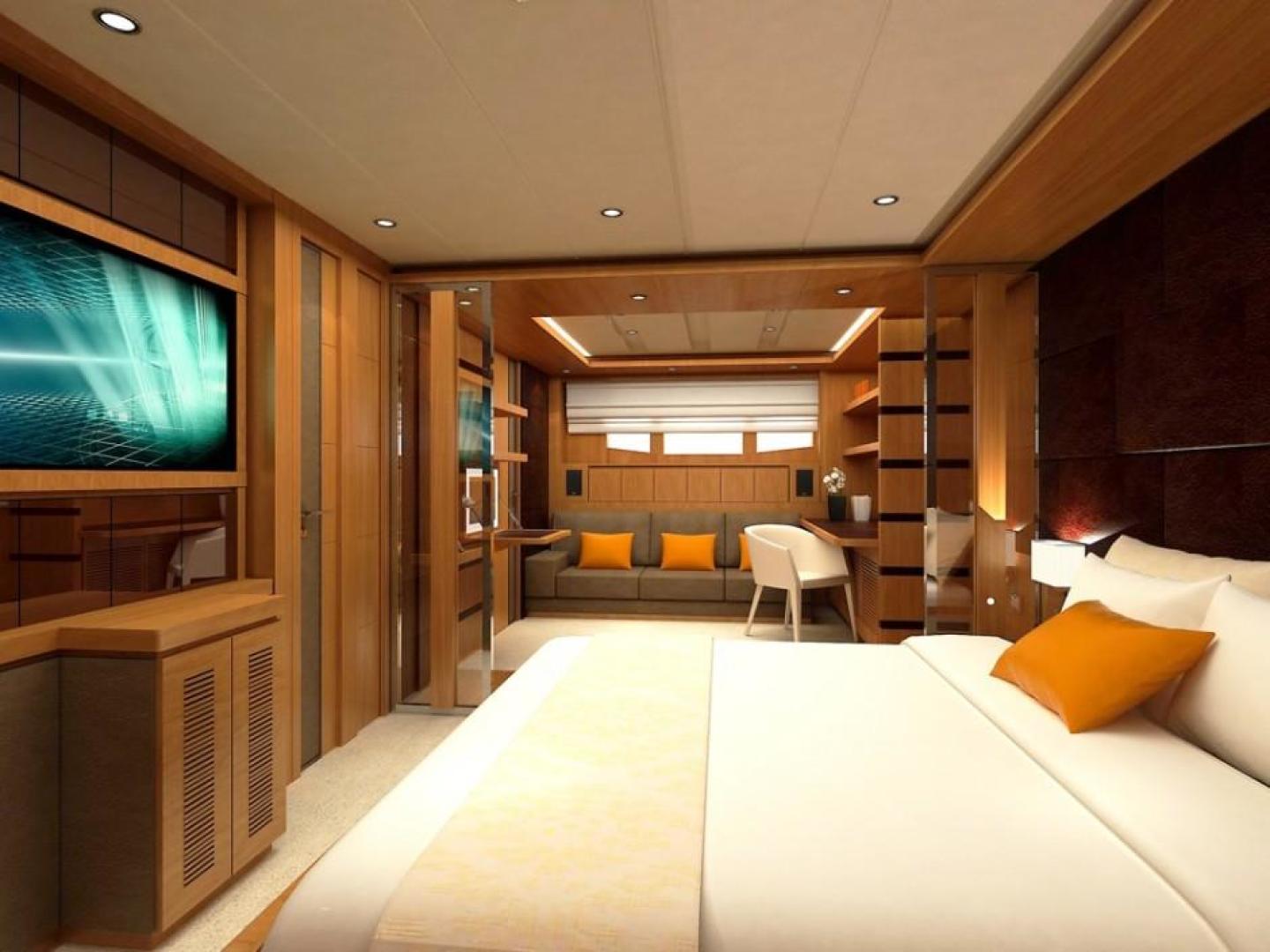

The full beam master ensuite stateroom is located amidships on the lower deck offering a tremendously large master stateroom, complete with King-sized bed, desk, vanity, bookshelves and cabinetry showing off some of the finest wood craftsmanship from Asia. Aft to port a massive walk in closet and to starboard an beautifully appointed master head complete with his and her sinks and a large showering stall,Tecma heads, and stone flooring.
- Teak cabinetry built per drawings
- Alcantara headliner
- Overhead lighting with mood lighting, all per lighting plan
- Leather & teak wall-covering
- Carpet flooring
- King-sized bed with storage drawers below
- Custom designed headboard
- Nightstands with wall lamps
- Flat screen Sony 40” TV with sat-receiver 5.1 Ch. home cinema & apple TV2 control & play through iPad
- Tinted windows
- Walk in wardrobe cedar lined
- Desk with book shelf
- Window side sofa with storage for 3 people

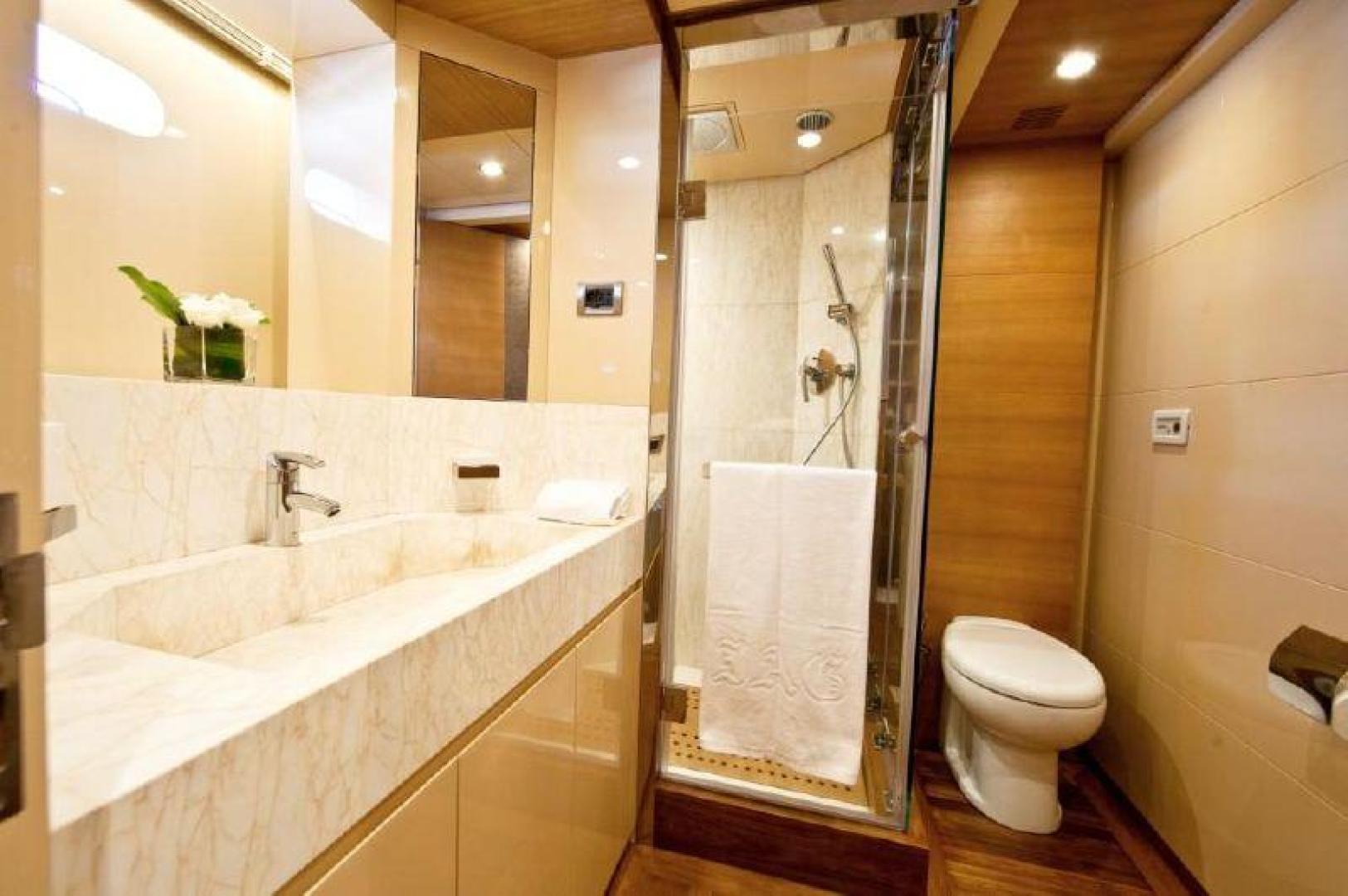

Master Head
- Teak cabinetry built per drawings
- Paint headliner
- Overhead lighting with mood lighting
- Teak & stone wall-covering
- En-suite heads with shower with glass shower doors
- Medicine cabinets with mirror
- TECMA heads
- Grohe shower system with designer towel bars, paper holders & facets
- Light weight granite counter with stone sinks
- Stone flooring
- Window with privacy window treatments.
VIP Stateroom
- Teak cabinetry
- Paint headliner
- Overhead lighting with mood lighting, all per lighting plan
- Leather & teak wall-covering
- Carpet flooring
- King-sized berth with custom quality innerspring mattress with storage drawers below
- Custom design headboard
- Nightstands with wall lamps
- Flat screen LG 26” TV with sat-receiver, two (2) overhead speakers, DVD compact amplifiers & HMDI port & iPod dock
- Port window with privacy window treatments
- Cedar lined lockers
VIP Head
- Teak cabinetry
- Paint headliner.
- Overhead lighting with mood lighting, all per lighting plan.
- Paint & teak wall-covering.
- En-suite head with shower with designer sculptured glass or equivalent decorative shower doors
- Medicine cabinets with ¼” bevel edge mirror.
- TECMA heads.
- Grohe shower system with designer towel bars, facets & paper holders.
- Light weight granite counter top with under mount sink.
- Port window with privacy window treatments.
- Teak flooring.
Guest Stateroom 1
- Teak cabinetry
- Alcantara headliner
- Carpet flooring
- Twin single berth with custom quality innerspring mattress with storage drawers below
- Overhead lighting with mood lighting, all per lighting plan
- Teak wall-covering
- Port window with privacy window treatments
- Cedar lined closet
- Flat screen TCL 22” TV with sat-receiver, two (2) overhead speakers, DVD compact amplifier & HMDI port & iPod dock
Guest Stateroom 2
- Teak cabinetry
- Alcantara headliner
- Carpet flooring
- Twin single berth with custom quality innerspring mattress with storage drawers below
- Overhead lighting with mood lighting, all per lighting plan
- Teak wall-covering
- Port window with privacy window treatments
- Cedar lined closet
- Flat screen 22” TV with sat-receiver, two (2) overhead speakers, DVD compact amplifier & HMDI port & iPod dock
Guest Heads
- Paint cabinetry
- Paint headliner
- Overhead lighting with mood lighting
- Paint wall-covering
- En-suite heads with custom fitted showers with seats with glass shower doors
- Medicine cabinets with mirror
- TECMA heads
- Grohe shower system with designer towel bars, facets & paper holders
- Port window with privacy window treatments
- Light weight granite counter with stone sinks
- Stone flooring
Captain's Stateroom
The captains quarters are on the main deck close to the helm providing a comfortable cabin for any captain with TV and ensuite head.
- Teak cabinetry
- Vinyl headliner with whisper wall tracking.
- Overhead lighting
- Teak wall-covering
- Teak flooring
- Single berth with storage drawers below
- Cedar lined wardrobe
- Flat screen LG 19” TV with big screen-carried DVD
- En-suite head AFT UTILITY AREA
Utility Room
- Overhead lighting
- Aluminum flooring
- Water tight door to access to swim platform
- Water tight door to engine room
- Main switch board
- DC switch board
- Monitoring panel & connection box
- Aircon system fan coils switch board
- Sea fire FM 200 marine fire suppression system
- MTU engine battery charger & Generator/house/emergency battery charger
- Cable master, shore power cable storage box
Crew Heads
- Teak cabinetry
- Paint headliner
- Overhead lighting
- Custom molded fiberglass shower
- Medicine cabinets with ¼” bevel edge mirror
- TECMA heads
- Grohe shower system with designer towel bars & paper holders
- Corian counter top with under mount sink
- Teak grid flooring
Crew Stateroom
- Sapili cabinetry
- Vinyl headliner
- Overhead lighting
- Formica wall-covering
- Teak flooring
- Two (2) single berth’s bunks with storage
- Cedar lined wardrobe
- Port window
- En-suite head
- Flat screen LG 19” TV with big screen-carried DVD
Crew Lounge
- L shaped settee with table
- Vinyl headliner
- Overhead lighting
- Teak wood flooring
- Flat screen LG 22” TV with big screen-carried DVD & sat-receiver
Exterior Equipment & Hardware
- Window glass will be tinted on deck sides with clear on front windshields
- All 316L stainless steel exterior hardware
- Hawse cleats, bow, quarter & aft
- Rebated life ring mounts
- Side rails: 1 ½” cap with 1 ¼” stations 316L stainless steel
- Stainless steel port holes with storm guard & screens
- deck lighting
- Aqua signal navigation lighting
- Teak decks
- Weather & exterior window covers
Sundeck
The sundeck offers a full service wet bar with grill, large U shaped dinette and a separate large dining table. Forward to port is a full service helm station. Further aft is space for your tender with davit. Access to the Sundeck is forward through from the pilothouse or aft down the stairs into the cockpit.
- Fiberglass molded settee with storage
- Fiberglass service counter with Miele electric BBQ & storage
- Fiberglass bar with raised glass top, refrigerator & ice maker & stainless steel sink.
- Helm station with molded fiberglass settee
- Venturi windscreen
- Radar arch, fiberglass with mast for electronics equipment on the arch
- Two (2) marine outdoor speakers with volume control through iPad AV amplifier.
- Deck lights
- Fresh water outlet for deck wash down
- Stainless steel rails
- Stern flag staff
- Aritex davit electro/hydraulic 1,233lbs/600kg with power lift, hoist & rotation
- Stainless steel sliding door to pilothouse
- Stairs stainless steel with teak treads leading down to aft deck
Foredeck
- Two (2) Muir 4500 hydraulic anchor windlass with chain stopper & devils claw
- Operated by hand pendant
- Two (2) 275lbs/125kg galvanized anchors recessed into pockets & 200’/60m14mm U2 chain
- Water tight access hatch to chain locker
- Foredeck storage lockers
- Teak deck
- Fresh water outlet for wash down
- Bollard cleat with haws rings stainless steel
- Removable stainless steel flag staff for pennant at bow
- Deck lighting
- Sun pad
Deck
- Built-in settee with removable cushions
- Teak table with four (4) teak chairs
- Weather cover for settee & table
- Two (2) marine outdoor speakers with volume controls through iPad or amplifier
- Storage locker
- Teak deck
- Stairs with teak treads leading to boat sundeck
- Electrical control stainless steel salon door
- Overhead lighting per lighting plan
Side Decks
- Pantograph doors, port to galley, starboard to foyer
- Hawse cleats, three (3) per side; center & aft hawse cleats rebated into hull
- Life ring recessed into fashion coming
- Overhead & deck lights
- Scuppers & deck drains
- Raised bulwark with stainless steel rails
- Boarding gate port & starboard
Swim Platform
- Swim platform with teak deck
- Steps to aft deck, port & starboard side with teak decks
- Stainless steel transom gates
- Retractable swim ladder build into swim platform
- Engine room access water tight door
- Hot & cold shower in the portside locker
Safety Equipment
- Eighteen (18) adult & two (2) child life jackets with light & whistle
- Two (2) 24” life rings with self-lighting light & smoke & two (2) life rings with life line
- Four (4) mooring & spring lines
- Four (4) fenders 12” x 34” with lines
- Twelve (12) portable dry chemical & two (2) foam fire extinguishers mounted in accessible places
- Two (2) fire hose stations
- Smoke & heat detectors
- Two (2) eight (8) person life rafts in fiberglass container with hydrostatic release
- Emergency bilge-pump system
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
