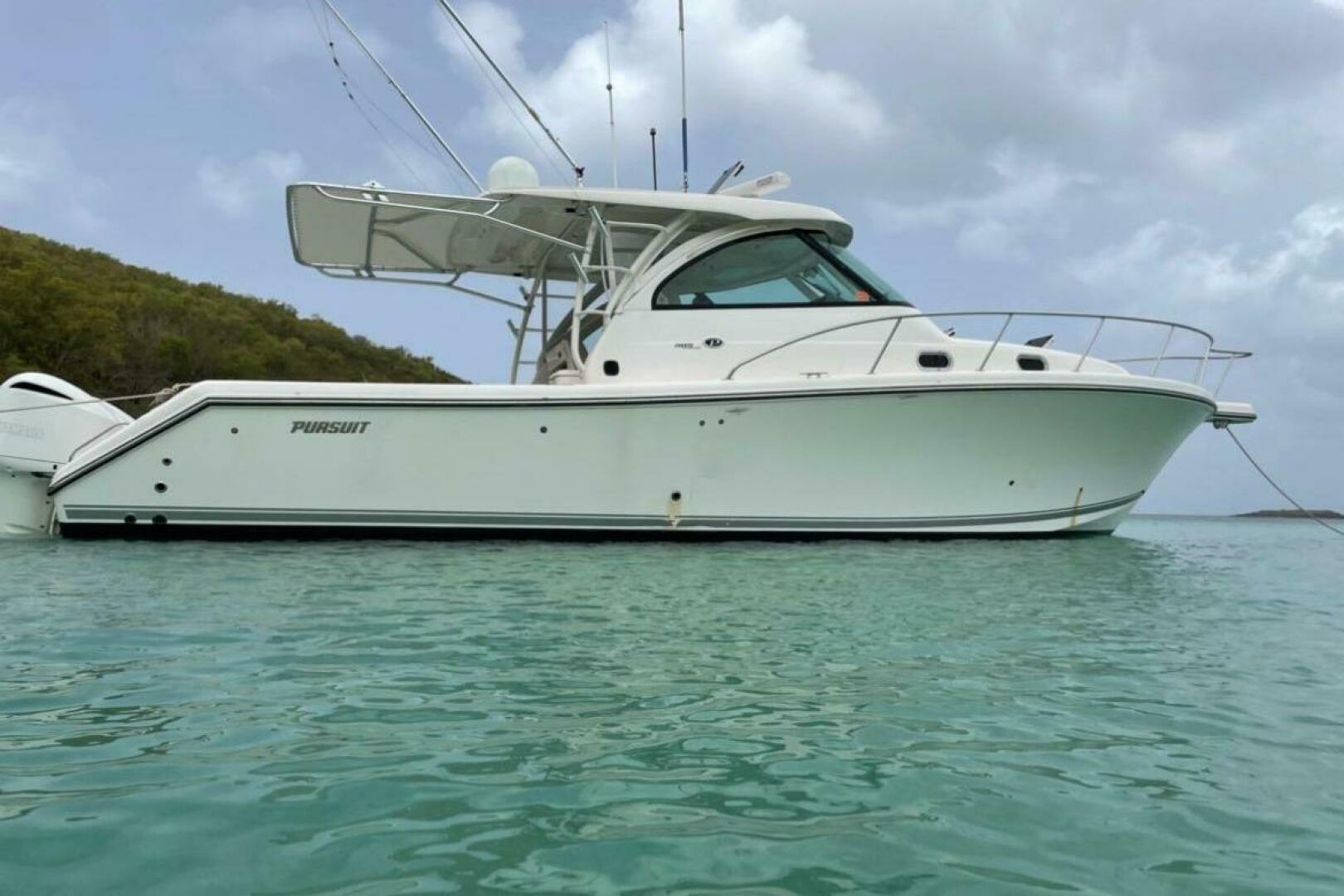

Snot Easy | 39' 2016 Pursuit

Standard Equipment

Hull, Deck and Cockpit

• Infused fiberglass windshield with tempered safety glass and forward electrically actuated ventilating center window
• Custom non-skid deck, cockpit surface and gunwale boards
• Self-draining cockpit with scupper drains
• One-piece welded, 316L stainless steel forward grab rail
• High density PVC rubrail with stainless steel insert
• Reinforced infused FRP one-piece stringer grid with bilge water management
• Molded-in fiberglass bow pulpit with 316L stainless steel bow roller and 10” mooring cleat, skid plate and chain binder
• Anchor windlass with switch at helm and remote switch at anchor locker with overboard drain and fresh and raw water washdown
• Two (2) 17” x 17” fwd hatches with adjuster and framed slide screens
• Acrylic transom door with 316L stainless steel hardware
• Six (6) 316L stainless steel 10” mooring cleats
• Full cockpit breathable coaming bolsters with dry-fast foam
• Four (4) stainless steel portlights with screens
• Port, starboard and center pantographic windshield wipers with fresh water washer system
• Helm seat with fold-up armrests and flip-up bolster
• Custom molded cockpit entertainment center with fiberglass sink, folding hot and cold water faucet, and cutting board with storage below
• 240 v cockpit grill with fiberglass cover
• Stbd. side 64 quart refrigerator/freezer with digitally controlled thermostat and overboard drain
• Portside bridge-deck “L” shaped lounge with padded backrest
• Tackle/storage cabinet in aft side of L-shaped lounge
• Acrylic sliding companionway door with lock/keeper, sliding screen
• Interior and exterior hardtop handrails
• Hardtop with spreader lights, six (6) LED courtesy lights, four (4) frame mounted rod holders, four (4) recessed speakers, two (2) acrylic hatches and canvas storage pouches for PFD’s
• Two (2) Forward facing aft fold-down seats
• Seven (7) drink holders
• Port and starboard 18” stainless steel transom grabrails
• Poly footrest with nonskid pattern
• Dockside fresh water inlet
• Cockpit freshwater shower (hot and cold)
• 240 v cockpit A/C with reverse-cycle heat 16,000 BTU

Comfort & Interior

• Solid Khaya floor
• Fiberglass interior headliner
• Convertible V-berth lounge with drawer and storage beneath
• Starboard side hanging locker, cedar lined
• 3-switch panel with 8 overhead LED lights and 4 accent lights
• Dinette base accent lighting and V-berth step lighting
• Polk stereo with bluetooth streaming, JL audio speakers (6), subwoofer and JL audio amplifier
• 110 v outlet, GFI protected
• Khaya table with powered adjustable pedestal
• Fwd dinette seating area, converts to V-berth with storage underneath
• Mid-berth with one (1) adjustable reading light
• Mid-berth settee
• 32” flat screen TV with DVD player
• TV antenna
• TV inlet and cabin outlets
• 11 gallon 220 v stainless steel water heater

Galley

• Corian® galley top with storage cabinets overhead and drawers under sink area
• Fiberglass sink with hot/cold mixing valve faucet
• Covered trash storage bin with removable container
• Kenyon 2-burner glass cooktop
• 110 v microwave
• 7.5 cu. ft. refrigerator/freezer
• Galley storage cabinets
• Storage cabinet for plates, cups and utensils
• 110 v outlet, GFI protected

Head

• Vacu-Flush head with 18 gallon holding tank
• Fiberglass head/shower with sump pump and molded-in fiberglass shower seat
• Acrylic shower door with stainless steel stanchion
• Designer sink with pressurized hot/cold faucet
• Corian® vanity top with vanity mirror and storage underneath
• 18” towel bar
• Framed head door with full length mirror
• 110 v outlet, GFI protected

Fishing

• Four (4) stainless steel rod holders in gunwale
• 300 quart insulated fiberglass refrigerator/freezer transom fishbox with digitally controlled thermostat and overboard drain
• Lighted Oceana blue 50 gallon circulating livewell with bottom drain plug
• Two (2) in-deck, insulated fish boxes, port and stbd, 68 gallon each with pump and overboard discharge
• Aluminum reinforcement plates and wiring for downrigger installation; aft gunwale, port and starboard
• Raw water outlet with speed tap hose and sprayer
• Three (3) cabin rod holders
• Six (6) enclosed lockable gunwale storage
• Reinforcement for fighting chair

Instrumentation Safety Equipment



• Pursuit custom master circuit breaker switch panel for 12 v and 110 v
• Yamaha® Command Link Plus instruments
• Boarding ladder, 316L stainless steel telescoping with fiberglass hatch
• 50 amp 240 v/60 Hz dockside power with 25’ cord and adapter
• One (1) 20 amp battery charger for engine starting batteries
• One (1) 40 amp battery charger for house, electronics, and bow thruster batteries
• Seven (7) battery system with batteries, trays, and switches
• 5.4 hp Bow Thruster
• 240 v A/C with reverse-cycle heat 16,000 BTU
• Panda® 8.0 kw diesel generator
• 25 gallon diesel fuel tank
• Teleflex power assisted dual cylinder hydraulic steering with tilt sport helm; 16” Edson comfort grip stainless steel steering wheel
• Deluxe Ritchie® compass
• Cabin and mid-berth CO detectors
• Independent windshield/wiper washer controls
• Pursuit custom master 12 v and 110 v interior MDP switch panel
• 12 KVA Isolation Transformer
• Fresh water tank - 65 gallons
• Fuel tanks - Total 370 gallons
• Four (4) 12 v receptacle; 2 helm, 2 cabin
• Three (3) fire extinguishers
• LED cockpit courtesy lights (7)
• Twin horn, fwd facing
• Three (3) bilge pumps; 2 - 1500, 1- 1100 forward
• Recessed Lenco® electronic trim tabs with indicator
• Certification/standard compliance: ABYC, USCG, CE, Transport Canada
• High water alarm with audible indicator
