40 Sedan | 42' 2011 Sabre

Manufacturer Provided Description

At Sabre Yachts our goal has always been to fulfill the dreams and wishes of our boat owners by listening carefully to their requests and blending their ideas into exciting designs. We consider our owners and potential owners to be valued members of the Sabre Design Team. The Sabre 40 is the result of our observation that our clients want to enjoy the same levels of personal luxury and comfort that they have come to expect in their homes and in their automobiles. To that end we have developed a style of sedan, available with or without fly bridge, that permits boaters to operate from the comfort of the yacht's interior or from the openness of an optional fly bridge. Technology is advancing rapidly and our owners have come to expect that if there is a new technology available, we will employ it in our designs. We have dramatically changed the way we build our yachts and the way in which they are propelled. Traditional values such as fine craftsmanship and great looks remain, as our owners have come to expect, but below the surface things are state-of-the-art.In our fiberglass shop we have changed infusion molding. It is greener in the sense that it uses considerably less resin and cleaner in that the emissions levels are much lower. It's lighter because we use less resin and that allows the hull to run faster and use less fuel. Infusion differs from traditional hand lay-up in that all materials are loaded dry into the mold in a stack, the stack is then covered with a plastic bag and resin is infused into the stack. This creates a stronger part with higher glass to resin ratios. With Zeus Pod everything has changed and nothing remains the same. The smaller engines using vectored thrust propel the boat at higher speeds using less fuel. And when maneuvering in tight spaces a joy stick makes child's play of docking.

Sabre factory options

Hull is PAINTED Flag Blue

Electric sunroof with sunscreen in lieu of standard two (2) pilot hatches

FRP molded electronics mast for sedan hardtop

50 Amp shorepower service with power cord reel in lieu of dual 30A

Clarion CD/FM/AM/MP3 satelite-ready stereo with four speakers and remote control

Inverter charger 3000 watt true sine wave with remote control

Anti-skid color (fore & side decks, coach roof, aft cockpit, and recessed area of swim platform)

Optional dinette in second cabin converts to double berth

Accord Shades on all opening ports

Ultraleather upholstery main salon only including chair

Reverso oil change system

Kahlenberg triple chrome horns

Searchlight mounted on optional hardtop mast or flybridge

Hot and cold transom shower

Fresh water wash down forward

Shore water inlet

Single Seagull water purifier on galley cold water

Single Seagull water purifier on ice maker

CUSTOM OPTIONS

26" Toshiba TV in Main Salon in lieu of Standard

Install custom freezer on platform, port side in engine room

Mirror in upper and lower panel of door between head and fwd cabin

Replace white cabinet door in head with cherry tambour

Install a Xantrex Inverter/Charger in lieu of Magnum Inverter

Prep for future FRP cabinet with hinge top, icemaker & electric grill in forward starboard cockpit

Install a cherry grab rail along the centerline of the main salon ceiling

Sunbrella on Fwd Cabin Mattress

Add icemaker in galley below the sink in lieu of freezer

Hull

HULL

- Modified Deep “V” Planing hull design, with shallow pod drive

tunnels.

- 16º deadrise at transom, 23º deadrise amidships.

- ISO NPG white gelcoat w/vinylester back-up resin.

- Bottom, topsides and transom vacuum-infused biaxial E-glass

with Airex C70 foam core.

- Stringer system biaxial E-glass with foam core.

- Bulkheads vacuum-bagged biaxial E-glass with polypropylene

honeycomb core.

- Molded E-glass swim platform with molded-in anti-skid surface.

- Hull side rubbing strakes.

- PVC rub rail with stainless steel cap.

- Painted (IMRON) double boot top.

- Gold recessed cove stripe.

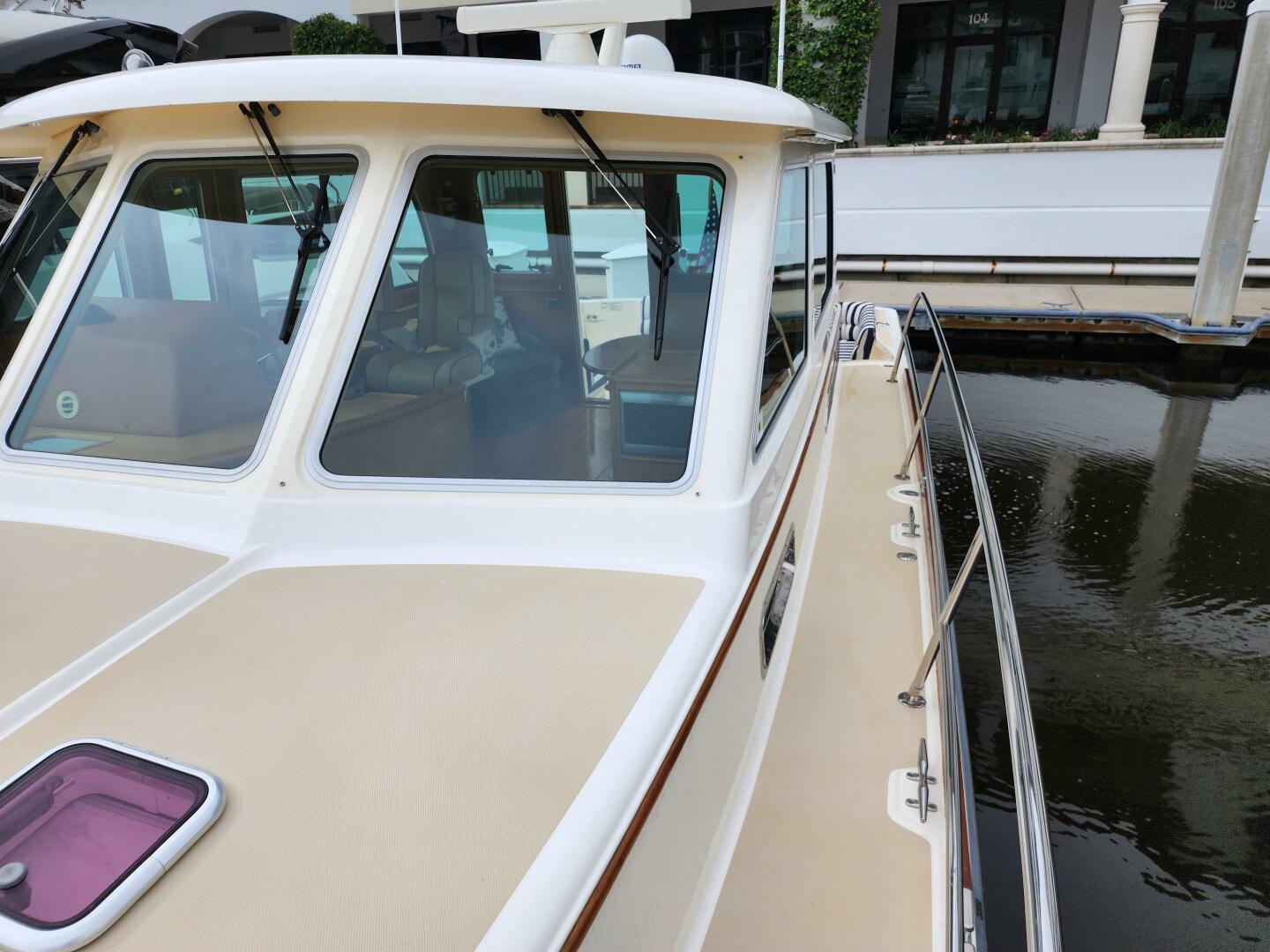

Deck and Hardtop

DECK and HARDTOP

- ISO NPG gelcoat.

- Vacuum-infused biaxial E-glass with balsa core.

- Molded-in anti-skid deck surfaces.

- Sliding aft salon door slides starboard to port.

- Sliding windows in salon on cabin sides.

- Top hinged windows in salon aft bulkhead.

- Hinged access door to side deck at helm.

- Flush, outward opening, transom door with latch.

- Anchor locker with slam latch.

- Large lazarette locker hatch with gas struts and compression

latches.

- Large engine room hatch in main salon with compression latch.

Deck Hardware

DECK HARDWARE

- 1 1/4" Diameter type 316 stainless steel perimeter rail system.

- (6) 12” Stainless steel cleats (2 fwd, 4 mid ship, 2 in aft cockpit).

- (1) 10” Stainless steel cleat to starboard of windlass as anchor

rode tie off.

- (2) Custom cast stainless steel mid-rail line chocks.

- (2) Custom cast stainless steel skene chocks forward.

- (4) Cast stainless steel hawse pipes in transom and hull sides.

- Fiberglass bow pulpit with dual anchor roller for 35# CQR or

Delta anchor and “lunch hook”.

- Anchor windlass, electric rope-chain type.

- Flag staff and socket on taffrail.

- Burgee staff on bow pulpit.

- (3) Lewmar Low Profile polished aluminum hatches w/screens.

- (6) Custom stainless steel opening port lights.

- Teak toe rails.

- Teak cabin side eye-brow.

- Custom cast stainless steel “SABRE” medallion.

Helm Station

HELM STATION

(2) 7215 Garmin Multifunction Displays

Scanstrut Wireless Cell Phone Charger

Fusion Remote Control for Fusion Stereo

VHF Ram Mic

Zantrex Inverter Control Head

- Cummins DTS single lever electronic controls.

- One Cummins Smart Craft display (engine data, tank levels,

vessel data, alarms).

- Triple windshield wipers with washers.

- Ritchie Compass.

- Switch controls for horn, running lights, anchor light, engine

room blower and optional equipment.

- Stazo 400mm custom teak steering wheel with tilt helm.

- (2) Stidd N-series single helm seats.

Propulsion

PROPULSION

- Twin Cummins QSB 5.9l 380hp electronic, fresh water-cooled

engines..

- Twin CMD Zeus 3500 pod drives, with integrated steering and

trim tabs.

- 120A, 12V alternators each engine.

- (2) Exhaust by-pass mufflers.

- Engine room blower.

- Engine room vent ducts.

- Engine room floor with FRP anti-skid.

- White gelcoated engine room

- Mylar face foam noise barrier.

Fuel System

FUEL SYSTEM

- (2) 190 gal diesel fuel tanks port and starboard.

- Racor fuel filters with water in fuel probes.

- (2) 2” “Diesel” deck fill plates.

Steering and Trim System

STEERING and TRIM SYSTEMS

- CMD helm, with joystick.

- Trim tabs integrated in CMD Zeus pod drives.

- Autopilot integrated in CMD Zeus system.

- GPS receiver included.

- “Skyhook” GPS position hold system.

12 Volt DC System

12VDC ELECTRICAL SYSTEM

- Two AGM Group 31 dedicated engine start batteries.

- Two AGM 4D deep cycle ship's service batteries.

- One AGM Group 24 generator start battery.

- Remote control battery switches with controls at helm.

- Manual emergency battery crossover switch.

- Illuminated main circuit breaker distribution.

- Digital battery monitor.

- Lighting:

Danish cabin reading lights.

High output LED lights in the overhead.

Halogen bar lighting in appropriate locations.

Fluorescent engine room lighting.

Cockpit courtesy lights.

- Marine-grade, tinned wire throughout.

120V AC Electrical System

120VAC ELECTRICAL SYSTEM

- Onan 9.0 kw generator including:

Interface to Cummins Vessel View display

Dedicated start battery.

Water lift muffler.

Cooling water intake strainer.

Sound shield.

Transfer switch.

- (2) 30A AC shore power inlets and (2) 50 ft. cords.

- Fail safe galvanic isolator.

- Illuminated main circuit breaker distribution panel.

- Digital AC system monitor

- (1) 120V outlet in each cabin and (1) in engine room.

- All galley and head receptacles are GFI protected.

- Additional outlets positioned in locations appropriate for entertainment systems in main and forward cabin

- 50amp, 3-bank battery charger

- Reverse cycle heat/ air conditioning in (3) zones

Forwards Stateroom

FORWARD STATEROOM

- Spacious Island Berth layout with 5" cushion. ¾” laminated trim.

- Cherry hull ceilings.

- (2) Drawers under berth. A/C return grills under drawers.

- (2) drawers in bureau w/locker w/shelf above and single louvered

door.

- Upper enclosed shelves with storage behind. Locker face to have

(2) louvered doors.

- Recessed shelf with fiddle on starboard main bulkhead with 19”

flat screen TV and DVD player.

- Large cedar lined hanging locker to port, with louvered door,

shelf and hangar pole.

- Open shelf above port hanging locker.

- Teak and holly sole.

- Sound deadening soft headliner panels.

- Pocket door to forward stateroom.

SECOND STATEROOM

- Double berth, 5" foam cushions, ¾” laminated trim.

- Cherry hull ceilings.

- (4) Drawers under berth, A/C return grille beside.

- Forward bulkhead storage locker, and shelf.

- Night stand with drawers below.

- Teak and holly sole.

- Sound deadening soft headliner panels.

- Pocket doors between lower foyer and second stateroom.

- Optional dinette available in this space.

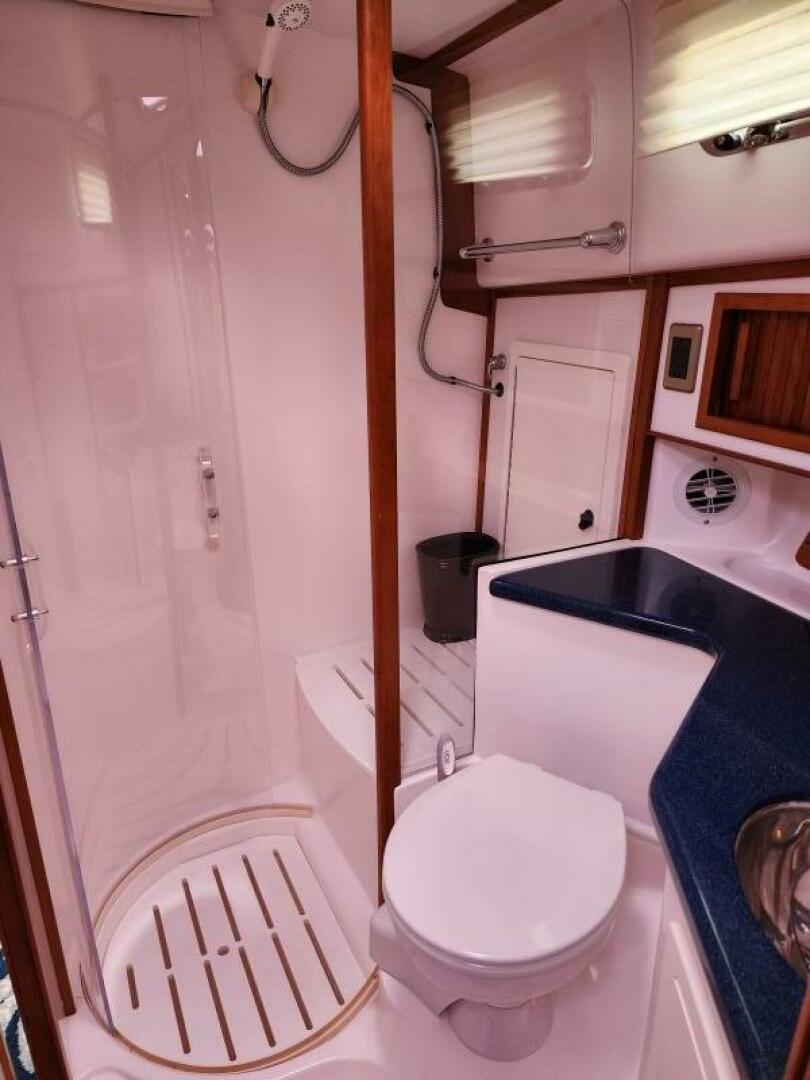

Head

HEAD

- Stainless steel under mount sink.

- Circular shower stall with seat and locker outboard.

- Hot and cold pressure water

- Electric shower sump pump.

- Storage lockers.

- Solid surface vanity top with bull nose.

- Towel bar.

- Wood trimmed mirror over sink.

- Ventilation blower.

Galley

GALLEY

- Mid level galley.

- Solid surface galley counter top.

- Stainless steel under mount sink with Scandvik faucet.

- Vitrifrigo 2-drawer Refrigeration with stainless steel doors.

- Isotherm 1-drawer Freezer with stainless steel door.

- Two burner touch control electric cook top.

- Convection microwave with stainless steel door above aft

counter.

- Built in coffee maker.

- Drawers and storage lockers below counter.

- Built-in waste basket.

- Large drawer under microwave opens athwartships

Main Salon

MAIN SALON

- “L” settee to port, 5” foam cushions, with storage and Sabre

tool drawer under.

High Gloss finished folding table with hi-low pedestal, lowers to

coffee table height.

- Bar and entertainment unit to starboard including:

19” flat screen LCD TV on lift with DVD player

Sound deadening, soft headliner panels.

Decor

DÉCOR

- Varnished cherry interior finish.

- Screens on all opening ports.

- Ocean Air screen/blinds on deck hatches.

- Ocean Air blinds on side windows and side door

- Optional fabric and drapery selections.

- Dovetailed maple drawer boxes

Fresh Water System

FRESH WATER SYSTEM

- Water capacity 140 gals.

- Stainless steel, 11 gal. hot water heater, operates on 110-VAC or

engine heat.

- Temperature control valve on hot water supply.

- Hot and cold water pressure system 12V.

- Fresh water spigot in engine room.

- Optional Cockpit shower, hot and cold.

- Optional Fresh water wash down in anchor locker.

WASTE DISPOSAL

- Polyethylene holding tank with 60 gallon capacity.

- Jabsco Quiet Flush fresh water MSD.

- Diaphragm waste pump on holding tank.

SAFETY

- Fire extinguishers, (4) at 2 1/2 lbs.

- Marelon sea valves on all thru-hull fittings below waterline.

- Bonding system to safeguard against galvanic corrosion.

- Automatic fire extinguishing discharge system in engine space

with override.

- (3) Automatic 12V electric bilge pumps.

- (3) high water switches and alarm.

Default Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
