MANGATA | 60' 2022 Horizon

MAIN CHARACTERISTICS

Name: MANGATA

Type: Power Catamaran Motor Yacht

Builder: Horizon

Year: 2022

Hull No: 624

Yacht Model: PC60

LOA (M/FT): 18.78M / 61’’ 7”

LWL (M/FT): 16.61M / 54’ 6”

Beam Overall (M/FT): 7.47M / 24’ 6”

Draft (Full Load) (M/FT): 1.46M / 4’9”

Displacement (Half Loaded): 37.86 Tons / 83,467 Lbs.

Hull Material: Fiberglass

Hull Configuration: Catamaran

Superstructure: Fiberglass

Decks: Flexi-teak Decking (Aft Deck) and Non-Skid (Gunnels)

Flag: USA

Exterior Designer: Horizon Design Team

Interior Designer: Horizon Design Team and Owner

Main Engines: 2x Cummins QSM11, 715 HP

Speeds: 21kn Max / 18kn Cruising

Range: 400 nm @ 18 kn

Guest Accommodation: Sleeps 6 in 3 staterooms

COMMENTS AND NOTEWORTHY FEATURES AT A GLANCE

MANGATA is the first PC60 with the factory extended bridge deck and larger flybridge hardtop. She was ordered new, hull #24, and the latest 60 PC to be available. Open salon layout, creating a massive and interactive salon to galley space. All fabric throughout the boat is upgraded Performance Fabric. Full climate-controlled FB. Twin gensets, watermaker plus much more.

• Starlink Satellite

• Full Garmin Package

• Dockmate Yacht Remote Control

• Less Than 200 Original Hours

• Better Than New Condition

• Annual Service Complete March 2023

OVERVIEW

MANGATA sleeps six guests in two king staterooms and one twin stateroom, each with ensuite.

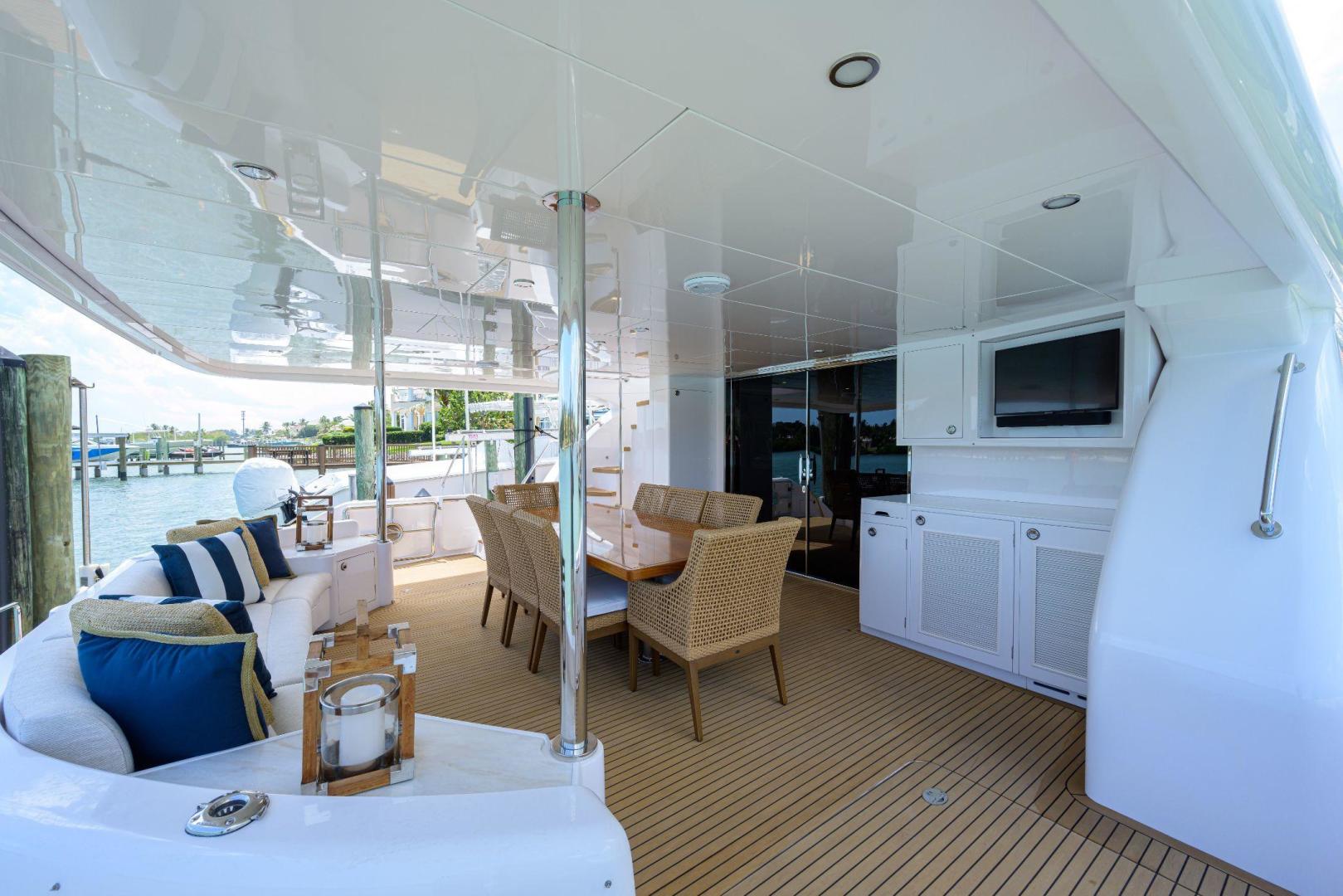

AFT DECK

This Corian bar counter is perfect for any boat, offering plenty of storage for drinks bottles and glasses, cupboards, and overhead lights to provide a perfect atmosphere. It also features a main control AC/DC panel, port and starboard sides boarding door, and Flexiteak decking. The cherry on top is the satin finished fixed height wood cockpit table and two large, curved steps down to a large dive/swim platform. This allows for easy access to the water and ensures a safe and comfortable environment.

OPEN SALON/GALLEY

Tempered safety glass windows provide an added layer of protection, while luxurious salon sofas are stainproof Crypton covered in upgraded performance fabric for a sophisticated look. Soft furnishings such as roman blinds, fabric headliners with down lights, and a window valance complete the space. For a touch of elegance, a satin wood finish on vertical and horizontal surfaces adds a warm and inviting feel. A wood selection from the shipyard standard collection elevates the design. Finally, a dimmer system for LED ceiling lights creates ambiance in the salon.

The modern galley offers the perfect combination of form and function. Custom, hand laid, Starburst mosaic on kitchen island front. Corian counter tops and back splashes offer an attractive and durable surface to work on while the Miele Flush cooktop and Zephyr Twister Extractor over cooktop provide the convenience and power needed for cooking. For baking, a Miele 30” Convection oven offers perfect results every time. The Miele French Door panel ready fridge provides ample storage and excellent efficiency. To complete the look, Fisher & Paykel panel ready dishwasher, Cutlery & crockery drawers, a pot and pan drawer, additional storage drawers and cupboards, double sinks with Insinkerator Disposal w/ air switch, under counter trash drawer and a Zephyr wine cooler make this galley an absolute dream.

OWNER’S STATEROOM and Ensuite Bath

This luxurious cabin retreat is equipped with all the amenities you need for a peaceful and comfortable stay. The king size walk-around bed with upgraded high end memory foam mattress provides an ideal sleep experience, while the window blinds and sconces offer the perfect setting for relaxation. For those looking to get ready in the morning, a large dressing area with full height, cedar-lined closets create the perfect space. As the finishing touches, a big scene glass window in the cabin, as well as a dimmer system for the ceiling lights, provide just the right amount of light and ambiance.

The ensuite bathroom is equipped with a large dual basin, cabinets, overhead lockers, and mirrors, allowing plenty of storage for toiletries and other items. The walk-in shower is spacious and perfect for a luxurious showering experience. The toilet is accompanied with a basin and cabinets for extra storage. There is also a large closet for linens and towels, making it a great option for keeping your bathroom organized and tidy.

VIP STATEROOM and Ensuite Bath:

The VIP offers a king size bed with a semi walk-around and upgraded high end memory foam mattress. To add to the ambience, a roman blind is hung over large scene window to keep the light out. Sconces and cabin lights provide a cozy atmosphere. Nightstands with cupboard, light switches, and outlets offer convenience and practicality. Cedar-lined closets provide a luxurious feel and a fabric headliner with recessed down lights adds a touch of sophistication.

To add a sense of luxury, an ensuite bathroom is included with a walk-in shower, head, and basin. An opening port light in the shower room provides natural light and a big scene glass window delivers a spectacular view. To finish off the bathroom, a shower seat in Corian will complete the look.

PORT TWIN GUEST CABIN:

This stateroom offers twin beds with luxury foam mattresses, which converts to an RV Short King, with filler wood piece and mattress extension piece, Roman blinds over port lights, reading lights and cabin lights, and an opening port light in the hull side. There is also a nightstand with drawers, light switches, and outlets, as well as an upgraded fabric headliner with recessed down lights. Finishing touches such as cabinetry and ample storage space make this cabin the perfect place to relax and enjoy the journey.

The ensuite bathroom includes a walk-in shower, head, and basin, as well as opening port lighting. For added convenience, there is a pocket door from the salon for use as a day head.

FLYBRIDGE DECK

The spacious flybridge has non-skid decking and, ample locker space for storage. There is luxurious lounge seating, and three custom made stainless swivel bar stools, al with upgraded Vern Yip Fabricut Performance Fabric. It also has a satin finished teak hi/lo and sliding table, a helm station with S/S wheel, a Stidd pilot chair, comfortable stairs with stainless handrails for access to the aft deck, a double bench seat on port side, and a double bench seat on STBD with slide out panel and cushion for daybed. Cut and bound wet dry vinyl flooring by Infinity. Additionally, there is one hatch on the hardtop (without screen) above the console, an extra bar for the new BBQ location in lieu of the standard layout, an F/B bar upgrade from FRP to Corian top, the use of PC65 Flybridge Deck in lieu of Aft fixed sunshade with stainless posts and lights.

CONSTRUCTION

Hull Material: Fiberglass

Superstructure Material: Fiberglass

Hardtop reinforced for Nav. gear to be mounted on top

Decks Material: Flexiteak on aft deck and stairs (UPGRADE)

Non-skid throughout the rest

Paint: White gelcoat finish for hull above

New Bottom Paint and PropSpeed (Jan. 2023)

Completed Exterior/Hull Detail (Jan. 2023)

Anti-fouling: International anti-fouling bottom paint w/anti-osmosis treatment

Underwater metal paint: PropSpeed/Prop Gold metal paint for underwater appendages

Motor Hull Type: Catamaran

Number of Decks: 2

CAPACITIES

Displacement Tons: 37.86 Tons

Water and fuel tank integral to hull

Fuel Capacity: 3,785 Liters / 1,000 Gallons

Fresh Water Capacity: 1,150 Liters / 300 Gallons

Water Makers (Per Day): 3,785 Liters / 1,000 Gallons

Holding Tank: 378 Liters / 100 Gallons

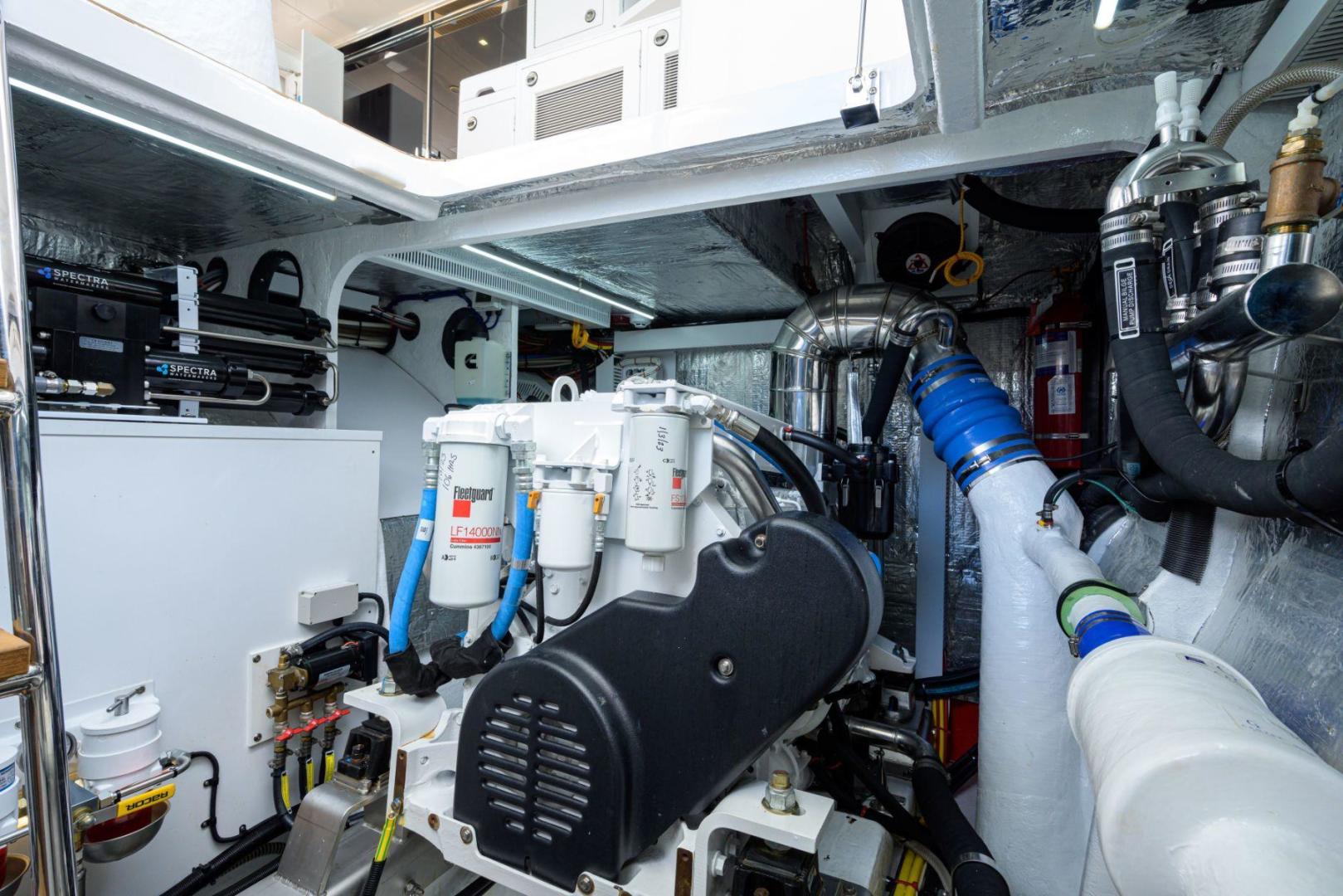

MAIN MACHINERY

Main Engines: 2x Cummins QSM11, 715 HP – Accessed through deck hatches in cockpit floor. Sound and heat insulated compartments.

Engine Hours: Port: 150 (Recorded APR 2023)

Starboard: 150 (Recorded APR 2023)

Propulsion Type: Direct Drive (Prop/Shaft)

Filters: Dual Racor filters in each engine room

Engines Exhaust System: Underwater exhaust system with bypass and mufflers

Shafting: S/S shafts AQUAMET HS 22# (UPGRADE)

Propellers: High performance S class Veem 4-blade propellers

Bronze P Bracket

Shaft and rudder packing glands with maintenance-free Tides seals

Stainless rudder with zinc plates

Engine Ventilation: Ventilation system with moisture eliminators

Output/Electricity: 110V or 220V electrical supply from generator/shore power.

Automatic transform switch for AC power supply.

Color-coded wiring for easy identification

Premium DC distribution board with switches, voltmeter, and amp meter

Solar Panels (UPGRADE)

Generators: Onan 17 KW (60HZ) with sound shield and air water separator. Hrs:200 (Apr 23)

Onan 11.5 KW Night Gen (UPGRADE) Hrs: 100 (Apr 23)

Remote panel for generator

Shore Power: Premium AC panel with switches 110/220VAC, 50A dock inlet

Extra 50-amp shore cord inlet at bow (UPGRADE)

3KW inverter

Batteries: (4) 210Ah AGM batteries for ship‘s DC 24V service power

(4) 210Ah AGM start batteries for engines/generator

AUXILIARY MACHINERY

Steering System & Gear

Hypro Electronic Command Steering System

Zipwake Power Trim Tabs at Stern (UPGRADE)

DockMate Yacht Remote Control

Bow Thruster SE210 13.15 HP

Stern Thruster SE210

Other: ElectroSea electro chlorination system (UPGRADE)

Fuel & Oil System

Dual Racor filters in each engine room

Fuel Transfer Pump

Oil change pump system for engines, gears and generators

Firefighting & Bilge System

High water bilge pumps with alarms

Automatic fire extinguisher outlets

Two-level water bilge alarm

Electric 24V bilge pumps

Fresh Water System

1,000 GPD Fresh Water Makers

Cabin Water Purification and Filter (UPGRADE)

Marine grade lines for freshwater system

High volume AC freshwater pump

Hot water circulation pump

20 Gallon hot water heater to genset

Black & Grey Water System Headhunter fresh water Royal Flush Bravo marine toilets in Master and VIP heads. Espresso toilets for the remainder with back-up freshwater pump.

(2) x 50 gallon holding tanks, Y valve for overboard discharge or dockside pump out

AC & Ventilation System Marine Air – central A/C for each cabin and salon (self-cleaning system)

Air conditioning on flybridge (2 outlets)

NAVIGATION & COMMUNICATION SYSTEMS

Monitors: 2 x Garmin 8622 Chart plotters

Additional Garmin 8622 screen on FB (UPGRADE)

Radar: Garmin 48” 48mile open array radar system

Multifunctional Workstation: Garmin Wind/Speed/Temp/Depth transducers

Garmin VHF at flybridge (with built-in loudhailer) and interior navigation station

Compass: Compass 4 ½” size on Flybridge

Auto Pilot: Garmin Autopilot System

AIS: Garmin

Horn: Remote controls for spotlight and ship’s horn

Navigation Light: Navigation LED lights

Spotlight: Tokai SANSHIN (1)-HR55

Flybridge: Instrument console w/engine controls, chart plotters instrument monitors and panels, fuel tank monitoring system

Bilge pump monitors and controls

One flood light on the radar arch

SAT com: Starlink

DECK MACHINERY & EQUIPMENT

Anchors

Anchor control at flybridge

Deck hatch for access to 63 kg S/S anchor, 200 ft high tensile

Roller and S/S chain stopper for anchor

Fresh water at chain locker

Anchor Chains

3/8” chain plus 100 ft mooring rope

Anchor Windlass System Locker for 24V anchor windlass with foot switches

Gunwale

Gunwale with external rub rail

Fiberglass cap rail

Mooring cleats with hawse pipes in gunwale

Cranes: ES1500 Crane (UPGRADE)

Boarding: Boarding Stairs (YRM)

Swim Ladder: (2) Manual swim ladder

Flybridge: Non-skid flybridge cambered deck with ample drainage

S/S flagpole on stern

STIDD Pilot Chair

One outlet near davit and cut FRP for single spigot flush mount washdown box

SAFETY, SECURITY, & FIRE FIGHTING EQUIPMENT

Coast Guard safety kit, (life jackets, horn, throw, rules of road and placards)

Fixed Firefighting System: Automatic fire extinguisher outlets.

Firefighting Equipment: Fire Extinguishers, Fire Blanket

Smoke Detection: In each zone

Fire Alarm: Yes

Life Rafts: Yes, per USCG regulations

Lifejackets: Yes, per USCG regulations

Life Rings: Yes, per USCG regulations

ENTERTAINMENT, AUDIO/VISUAL AND LIGHTING SYSTEMS

Video Equipment: KVH UHD Sat TV with Dummy Dome

Audio Equipment: XM Weather

Lighting: Navigation light selection panel

Vimar switches for lighting switches and receptacles.

Courtesy lights

Cockpit LED down lights

4 x White Underwater lights (UPGRADE)

LED Nameboard Lights

Dimmer switch for aft deck ceiling lighting

Dimmer switch for 3 lights above aft deck table

Hard top ceiling lights

Blind/Shades: Poseidon pleated blinds on forward windows in Salon (UPGRADE)

(4) additional electric blinds in Galley (UPGRADE)

Main Salon: Salon TV is 60 inch Hi-Lo

Salon – 40” LCD TV with Sonos Sound System and separate Blu-Ray disc player

Master Stateroom: 32” LCD TV with Fusion Marine Stereo and (2) SM speakers

VIP Stateroom: 32” LCD TV with Fusion Marine Stereo and (2) SM speakers

Twin Stateroom: 19” LCD TV with Fusion Marine Stereo and (2) SM speakers

Aft Deck: Aft deck TV cabinet for O/S 32” TV

Aft deck – Fusion Marine Stereo and (2) speakers

Flybridge: Indirect lighting under bar counter

TV box for O/S 40” TV

Fusion Marine Stereo and (4) speakers

Dimmer switch for F/B ceiling lighting

GALLEY & LAUNDRY EQUIPMENT

Cooking Equipment: Miele KM6365 Flush cooktop

Zephyr Twister Extractor over cooktop

Miele H6780BP 30” Convection oven

Refrigeration/Freezer: Miele KFNF9955IDE French Door fridge

Dishwasher: Fisher & Paykel DD24ST19_N) dishwasher

Other: Corian countertops and backsplashes

Cutlerly and crockery drawers

Additional storage drawers and cupboards

Double sinks with Insinkerator PRO750 Disposal w/air switch

Under counter trash drawer

Zephyr wine cooler

GE top loading freezer on Flybridge

Laundry: Washer and separate dryer, including laundry cabinets and iron board

OTHER EQUIPMENT

Awnings/Shades: Sea Crylic aft panels with zip up door, and side panels with zip up window

Covers: Stamoid covers Lieu of Sunbrella for helm console, Stidd helm chair, FRP lounge seating & table, BBQ on flybridge, aft cockpit seating, and special padded cover for aft cockpit table. (UPGRADE)

Fishing Equipment: (4) extra drain management systems for rod holders

ADDITIONAL UPGRADES

Recent Works Done

New Bottom Paint and PropSpeed (Jan. 2023)

Completed Exterior/Hull Detail (Jan. 2023)

Exterior Build Upgrades

Use of PC65 Flybridge Deck in lieu of Aft fixed sunshade with stainless posts and lights

Upgrade Vern Yip Fabricut Performance Fabric on Flybridge sofa, bench seats, and barstools

Extra wood ordered to avoid bigger knots

Add extra S/S railing on port and stbd swim platform

Extra gate forward on both Stbd and Port sides

Gloss varnish in selected areas

Aft deck table starburst

Corian on aft deck bar and end tables

Side Gate cut into railing on port side only

Double V-Cool Tint

Aft Deck bar stools – fabric upgrade

Interior Build Upgrades:

Salon bar stools – fabric upgrade

Upgrade to Arrow root vinyl in Twin cabin headboard

Change nightstands from wood to Stratum

Upgrade VIP headboards

Upgrade Ottoman style in Salon with special fabric

Add mirror insert above shelf and below window box in Guest VIP

Upgrade Master wall behind scones to Adari Maldives Gent Almond

Upgrade fabric on Guest Twin Headboard to Thibaut Performance wall coverings

Wiring to 2 x side blinds in salon

Ceiling design in galley

Zephyr beverage unit

Sofa fabric for salon

Recessed mirrors on back of door in VIP and Twin and Master bathroom

Polarstone in galley and counters to pot

Cat box cupboard behind bathroom door

Upgrade handrails to gloss wood with stainless endcaps
