Fantastic | 77' 2019 Azimut

Carbon-tech Generation

The use of carbon fiber is a construction choice that allows volumes and surfaces to be increased in size while keeping the same weight, therefore maintaining excellent levels of dynamic stability.

Carbon fiber lamination is applied to:

• Superstructure
• Flybridge
• Mast
• Transom/platform

Triple IPS Propulsion

Triple Volvo IPS propulsion system installed on hydrodynamically optimized hull shape

• Superior maneuverability
• Minimum noise and vibration level
• Best fuel efficiency (up to 25% reduction compared to shaft line)

Active Trim Control

Interceptor technology provides a smooth, precise Auto mode that automatically takes care of all trim adjustments. It delivers trouble-free handling and a system without corrosion or leaking oil.

NAVIOP Advanced Monitoring System

State-of-the-art solution for displaying and controlling main onboard systems: engine data, fuel consumption, generators, trim, interceptor, navigation lights, batteries, air conditioning.

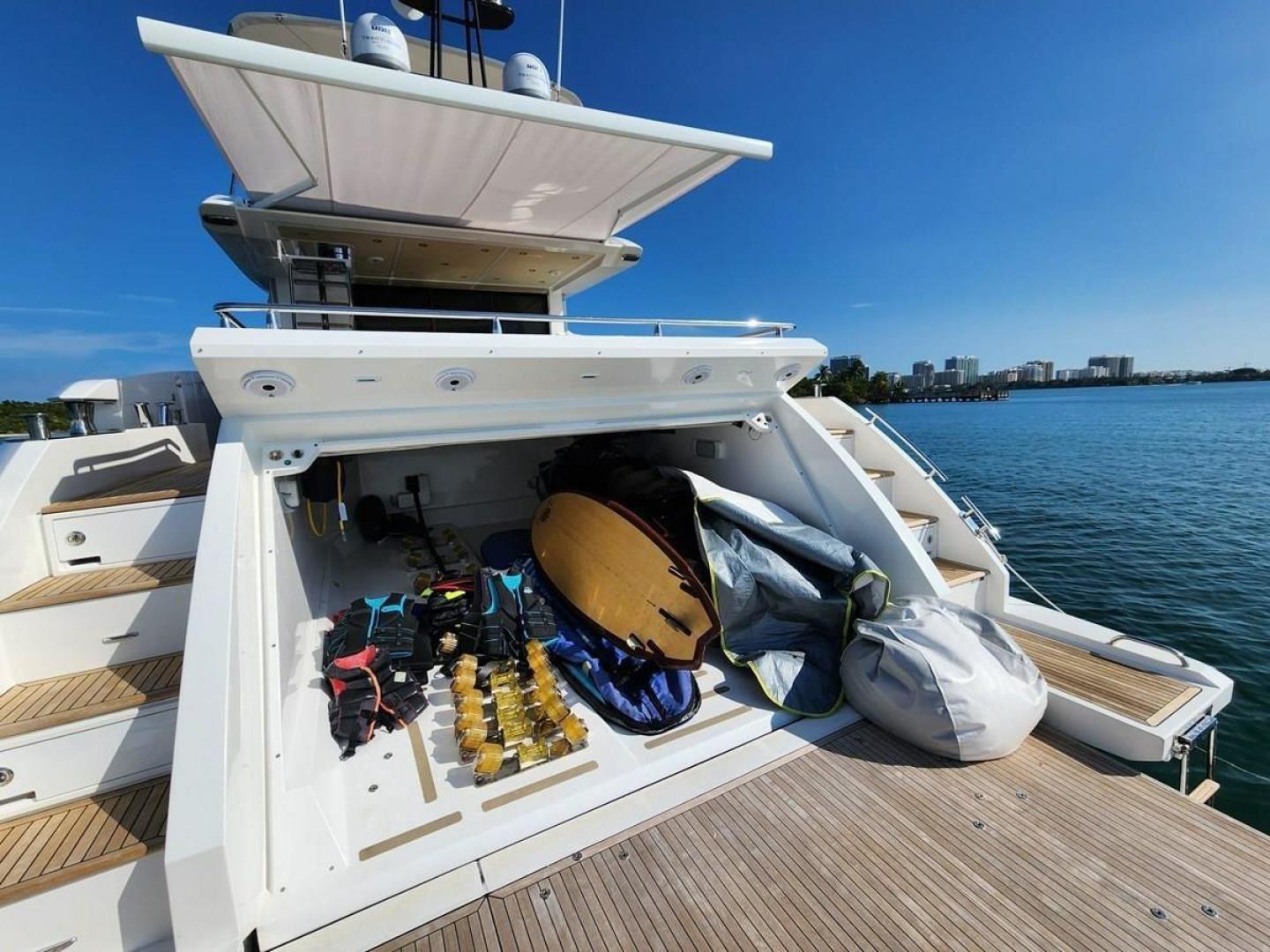

Aft Pivoting Platform and Garage

Innovative mechanism. Large beach area, garage for 385 tender and jet ski, easy launch mechanism.

HTS High Technical Standard Declaration

Azimut 77S has been designed and engineered according to the highest standards applied in the recreational industry for production boats. With CE Class A and NMMA Certification, the boat is in compliance with the two major safety codes for boats under 24 meters.

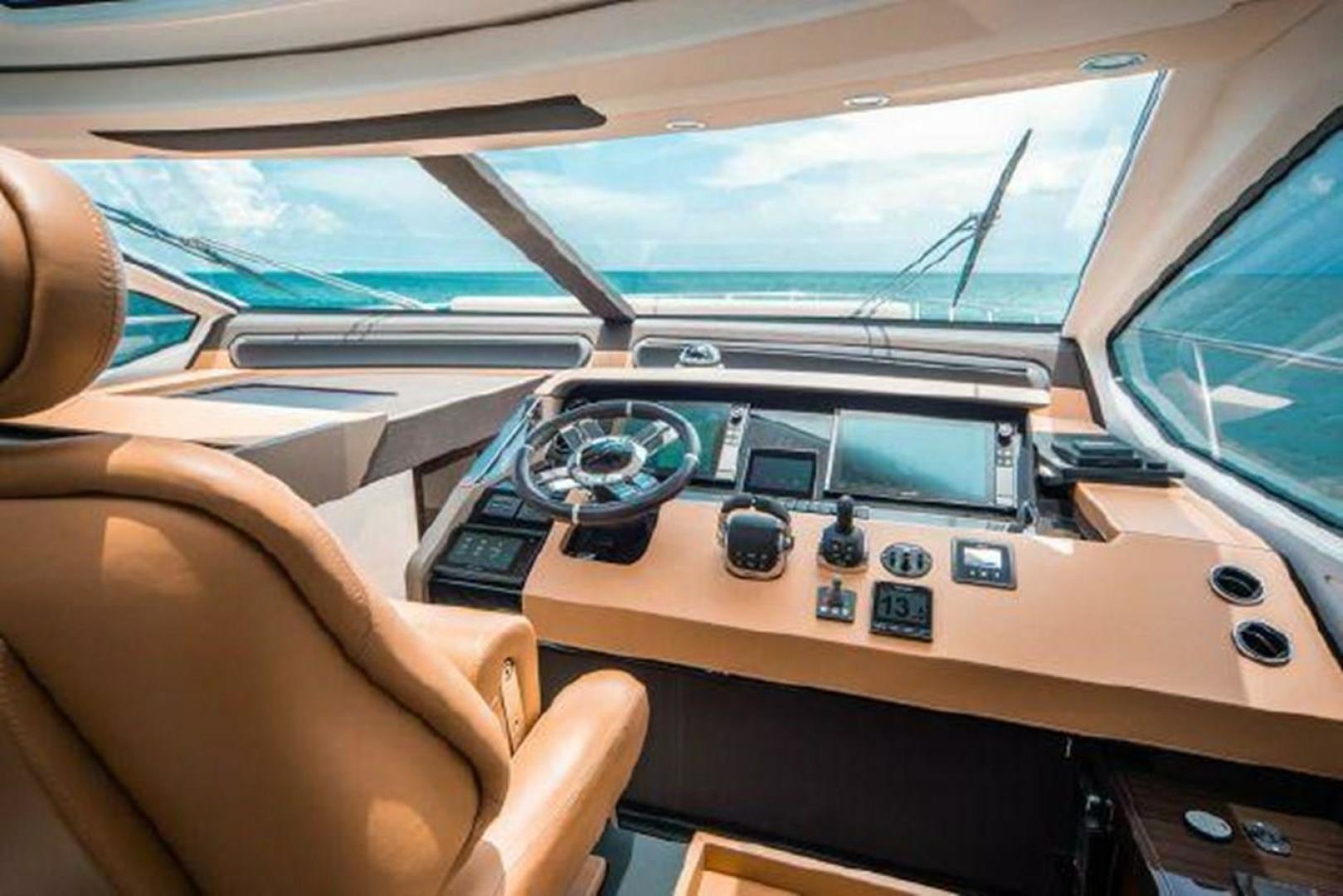

Joystick Driving

Joystick Driving offers an easy way to maneuver with precision and at the same time, it allows the driver to steer comfortably at all speeds with only one hand. When Joystick Driving is activated, the Autopilot turns on simultaneously.

The driver steers the boat by moving the Joystick. When the Joystick is released, the Autopilot is engaged and keeps a forward course.

• Sound system upgraded within last 12 months
• Updated interiors within last 12 months
• New custom seating on flybridge within last 12 months
• New salon carpet within 3 months
• Satellite antenna for TV and internet
• Adjustable search light
• Automatic bow Bimini top
• Barbecue in the cockpit
• Bow control lights (2)
• Cockpit refrigerator
• Cover tent for garage door
• Crew cabin third bed (folding bed)
• Dimmer for lights below deck
• Electric awning tent in the cockpit
• Folding bed in guest cabin
• Generator ONAN 27kw - Extra unit
• Hauling-launching system for tender and jet ski
• The ice maker in the cockpit
• NAVIOP monitoring system
• Raymarine gold package
• Raymarine automatic identification system AIS650 transceiver
• Seakeeper stabilizer NG16
• Stern fly lights
• Table on bow
• Teak on fly wit custom seating and Bimini top
• Teak on side decks
• TV system up and down
• Watermaker 55 liters/hour
• Underwater lights
• Additional electric conduits

February 2023:

• New salon carpet
• Fire suppression system
• New window trim
• Bow table refinished
• New wall fabric
• A/C chillers serviced
• Sea keeper pump repaired

2022:

• ANG power converter system repaired
• Completed new GL audio-speakers, amps, and wiring with four (4) individual remote systems
• KVH TV
• All new custom seating on bridge
• New Bimini Top
• Underwater lights (5)
• Bottom paint - June 22
• Engines serviced - June 22

• Hull Material: FRP with PVC core sandwich and carbon fiber reinforcements
• Engine Beds: FRP with laminated steel reinforcement
• Decking: teak covered floor
• Superstructure: Open fly-bridge
• Hull/Deck Joint: “shoe box” type with chemical and mechanical bonding
• Cockpit: Aft with teak covered floor
• Bottom: Antifouling bottom paint, black color
• Hull number: AZ177S44819 (This vessel is a 2019 model, manufactured in 2018)
• Official number: 749619

Main Engines ttPort tCenter ttStarboard

Manufactured: tVOLVO PENTA VOLVO PENTA VOLVO PENTA

Model: tttt IPS1350 tt IPS1350 t IPS1350

Engine Type: In-line 6-cylinderDiesel In-line 6-cylinderDiesel In-line 6-cylinderDiesel

Serial/Number: 2013774439 tt2013774440 2013773286

Rated HP: 1,000 hp (735 kW) 1,000 hp (735 kW) 1,000 hp (735 kW)

Gear Mfg.: VOLVO PENTA VOLVO PENTA VOLVO PENTA

Gear Model No.: IPS30D IPS30D IPS30D

Engine Cooling System:

Two separate cooling circuits:

• Engine coolant
• Raw water with dedicated raw water intake (one per engine) with strainer.
• Coolant cooling by raw water-cooled plate-core heat exchanger

Ventilation and blower:

• (4) Aspirating blower on E/RSTBD side vents located on E/R hull sides

Engine controls:

• VOLVO PENTA electronic control and joy-stick. Main control is in wheelhouse. Secondary controls at fly-bridge station. Docking joy-stick located at cockpit stbd pilaster.

• Fuel Lines: Predominantly fire insulated flexible hoses with copper fittings.
• Tanks: One (1) x FRP tank laminated forward in bilge FWD of E/R. Total capacity is 4,000 L - (1,056 US gal) (Diesel); Mechanical indicator at valves in crew bilge.
• Filtration: Two (2) per engine (six (6) total) VOLVO PENTA model: 877770 filters, one (1) PARKER RACOR model: R12T filter for each generator (total of two (2))
• Shut-off Valves: One (1) shut of electro-valve per line (total of five (5)) located on top of tank in crew bilge.

• Steering: Electro hydraulic system 24Vdc by VOVLO PENTA
• Rudders: Three (3) IPS pods
• Propellers: Two (2) x VOLVO PENTA on each drive (one four (4) blades and one (1) three (3) blades) – Total of six (6) propellers
• Trim Tabs: Interceptor style VOLVO PENTA
• Thrusters: Bow: SIDE POWER 24Vdc – model: SP240TCi – s/n: 1736408

• No of sets: tTwo (2)
• Manufacturer: ONAN ONAN
• Model: 27MDKDU-8208A 27MDKDU-8208A
• Serial No.: K170261426 D170177358
• Hours: 1201 1207
• Rating: 27kVA @50Hz - 115/230V - 1Ph

• Windlass: One (1) x QUICK - 24V – 3500W
• Anchors: One (1) x DELTA style – galvanized
• Rode: Chain
• Other Ground tackle/deck gear: Cleats: two (2) at bow
• two (2) per side (total four (4)) at midship
• one (1) per side (total two (2)) aft cockpit
• one (1) per side (total two (2)) swim platform

E/R:

• Three (3) x WHALE 3000GPH 24V automatically operated by electronic switch
• Three (3) x WHALE manual pump – located in cockpit port side pilaster
• Emergency engines crash pump from center engine raw water intake valve

Crew quarter:

• Two (2) x WHALE 3000GPH 24V automatically operated by electronic switch
• One (1) x WHALE manual pump – located under Stbd crew bunk

Fwd bilge:

• One (1) x WHALE 3000GPH 24V automatically operated by electronic switch

• International running light
• Sound Signals: Horn

Fire Suppression (Fixed):

• One (1) x 41.94Kg HFC-227 fixed tank in engine room

Fire Suppression (Portable):

• One (1) x 2Kg ABC powder fire extinguisher in galley
• One (1) x 2Kg ABC powder fire extinguisher in port guest cabin
• One (1) x 2Kg ABC powder fire extinguisher in VIP
• One (1) x 2Kg ABC powder fire extinguisher in master cabin
• One (1) x 2Kg ABC powder fire extinguisher in port crew cabin
• One (1) x 2Kg ABC powder fire extinguisher in Stbd crew cabin
• One (1) x 1Kg ABC powder fire extinguisher in cockpit

Re-boarding Ladder

• Chart Plotter: Helm-station: Two (2) x RAYMARINE AXIOM PRO 16S
• 16” touchscreens; Flybridge: two (2) x RAYMARINE AXIOM PRO 12S 12”
• touchscreens.
• Radar: RAYMARINE 4kW HD Color Array
• Depth Sounder: AIRMAR transducer
• Compass: Helm-station: RITCHIE
• Speed Log: AIRMAR sensor
• Marine Radio: Helm-station: RAYMARINE; Flybridge: RAYMARINE
• Autopilot: VOLVO PENTA integrated
• Wipers: Total of two (2) wipers blades.
• Spotlight: ITT JABSCO operable from wheelhouse and flybridge
• Monitoring System: NAVIOP system at helm-station and F/B station

AC Systems:

• AC Panel: Main AC 240V-50HZ (Panel located in E/R – secondary panel in companion way landing)
• Outlets: 110V throughout boat

Battery chargers:

• One (1) x MASTERVOLT model: CHARGERMASTER 24/12-3 - 24V battery charger for engine battery bank
• One (1) x MASTERVOLT model: CHARGERMASTER 24/60-3 - 24 V for service battery bank
• One (1) x MASTERVOLT 12V battery charger for generator batteries

Source:

• Two (2) x 50 amp shore power inlets
• Two (2) x ANG Converter model: SPC16 (Converts 50HZ to 60HZ)

• DC Panel: Main DC 24V panel is located E/R – secondary panel in companion way landing
• Battery Switches Port, center, Stbd engine and parallel
• Batteries: Ten (10) x URANIO model: SELENE VR900

• Underwater Lights: Five (5) on transom
• Water-maker: One (1) x IDROMAR
• Passerelle: Electro-hydraulic 24V OPACMARE model1103.34.07.24 – s/n: 18B12-110334-RNNW – load capacity: 150Kg
• Stabilizer: One (1) x SEAKEEPER model: 16 –– s/n: 445 – cooling pump GIANNESCHI 230Vac
• Hard-top: Sliding electric 24Vdc
• Garage: Electro-hydraulics 24Vdc garage door
• Two (2) x Windlass 24Vdc

• Fore-peak
• Aft cockpit
• Flybridge

• Chilled water system
• DOMETIC four (4) compressors – model: CONDARIA PCWM36004co1.16
• Circulating pump: CALPEDA model: NMM25/12A/A- R
• Raw water pump GIANNESCHI
• Salon two (2) air handler
• Helm-station air handler
• Port Crew cabin air handler
• Stbd Crew cabin air handler
• Port guest cabin air handler
• Stbd guest cabin air handler
• VIP air handler
• Master cabin two (2) x air handler
• Galley air handler

Heating system:

• Reverse A/C system

• Salon: TV LG 50'' retractable
• Master cabin: Radio FUSION model: MS-RA70

• Refrigeration: Top/bottom refrigerator/freezer MIELE
• Water Heater: One (2) x ARISTON 1500W – 230Vac
• Stove: ceramic four (4) burners cooktop MIELE
• Oven MIELE

Other:

• Extractor hood
• Dish washer MIELE

Crew galley:

• Washer: BOSH ECOSILTENT DRIVE
• Dryer: MIELE HONEYCOMB CARE T8822C

Cockpit:

• Electric grill KENYON
• Refrigerator VITRIFRIGO
• Ice-maker VITRIFRIGO

Heads:

• Total of five (5) heads TECMA 24V fresh water flush system

• Manufacturer: WILLIAMS model: TURBOJET 325
• HIN: WMRT2842I718

• Jetski
