Available for SalePROJECT OCEAN89' 2023 Arksen

26 North Yachts is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel


LOA: 89' (28 m)
Beam: 23' (8 m)
Hull Material: Aluminum
Fuel Capacity: 4,755 gal (18,001 L)
Fresh Water Capacity: 1,585 gal (6,000 L)
Flag: Cayman Islands
Location: United Kingdom
Build Year: 2023
Builder: Arksen
Model: 85
Type: Expedition Yacht
Cruising Speed: 12 Knots
Max Speed: 14 Knots


Hull & Dimensions

Type: Arksen 85

Hull: Aluminum

Superstructure: Aluminum

Builder: Arksen Ltd

Model: Arksen 85

Year built: 2023

L.O.A: 27.40m

Hull length: 26.22m

Beam: 7.01m

Draft: 1.55m

Displacement: Full Load 112 tonnes

Cruising Speed: 9-12 knots

Max Speed: 14 knots

Max Range: 7,000 nm

Max Electric Range: 30 nm

Design: Arksen / Humphreys Yacht Design

Flag: Cayman Islands

Mechanical Equipment

Engines: 3 x 200kW Variable Speed Diesel Generators (Praxis Hybrid System)

Engine hours: Commissioning hours only

Propulsion: 2 x 250 kw Electric Motors

Propellers: Twin Screw, 5 blade,

Fuel Capacity: 18,000 litres

Keenan Fuel Polishing System

Fresh Water capacity: 6,000 litres

Cathelco Seafresh H2016 Mk3 Duplex RO Water Maker, 2 x 276 lph

Cathelco HEM Water Softener

Black water tank: 900 litres

550 litres sludge tank

Hamman Compact 0125 Sewage Treatment Plant

Thrusters: OYS 36kW Fixed Bow Thruster/ OYS 36kW Swing Down Stern Thruster

Control: Wireless, joystick control position keeping and maneuvering system

Stabilisation:Humphree Fin Stabilisers

1 x SK 09 and 1 x SK 18 Seakeeper Gyro Stabilisers

Humphree Interceptor Ride Control System

Air Conditioning: MAR-IX Air Conditioning System

Heating:CWarm 33 Diesel Boiler


Generators: 3 x 200kW Variable Speed Diesel Generators

Batteries: 160kWh LiFePO4 Propulsion/House Batteries in A60 Battery Room

200 Ah LiFePO4 24V DC Service Battery Bank

300 Ah LiFePO4 24V DC Emergency Battery Bank

100 Ah LiFePO4 24V DC GMDSS Battery Bank

Shore Power: 3 Phase 63A 50Hz or 60Hz

Glendinning shore power cable reels

AC Power: 3-Phase 400V 50Hz AC Power to primary consumers

Single Phase 230V 50Hz AC Domestic ring main

Solar Power: 6kW Maximum output


4 x 24” Touchscreens at main bridge for navigation, control and monitoring

2 x 24” Touchscreens at lower bridge for navigation, control and monitoring

2 x Furuno DR12A NXT Open Array Radar Scanners

Anschutz Standard 22 Compact Gyro Compass with heading repeaters at each bridge

Furuno SCX-20 GPS Compass

Furuno PG700 Solid State Rate Gyro Fluxgate Compass

Furuno Autopilot, control head at each bridge

Furuno GP170 GPS

Furuno GP39 Backup GPS

Furuno FA-170 Class A AIS

Furuno FI-70 Instruments at main bridge, lower bridge, crew cabin

Furuno TZT3 9F MFD in crew cabin

FLIR M364C Stabilised Camera

4 x External, 2 x Engine Room, 1 x Battery Room CCTV Cameras

Network Video Recorder


2 x Furuno FM4850 VHF with handsets at upper and lower bridge

Thrane LT-3100S Iridum GMDSS

Furuno Felcom 9 Inmarsat C Terminal

Sailor 4300 Iridium Certus Satellite Data

KVH VSAT V7HPS Satellite Data

Furuno NX700B Navtex

Yellowbrick YB3i Tracker

Pepwave MAX BR1 Mk2 4G Router

On board WiFi Network

Audio & Video

Sony 55” TV on lift in main saloon

Sony 40” TV on lift in upper saloon

Sony 43” TV in snug/office

Samsung 32” Frame TV in master cabin

Apple TV, Chromecast and network connection for each TV

Sonos Audio in each cabin and saloon

Sonos Audio at main deck and upper deck aft seating areas

Sonos Move portable audio for external spaces

OutClass-R Media Server

Crestron Control of AV and Hotel Systems

Deck Equipment

Ultra 130 kg SHHP Stainless Steel primary anchor

Lewmar Claw 80kg Stainless Steel secondary anchor

140m of 14mm stainless steel short link chain per anchor

2 x Lewmar V8 3-ph Vertical Stainless Steel windlass with Gypsy and Warping Drum

2 x Andersen 62 stainless steel self tailing winches for aft deck line handling

2 x Lewmar EST REVO back winding winches for outrigger and lifting control

Opacmare 3078-45 hydraulic crane for tender handling

Carbogale carbon fiber folding gangway


Master Suite configured as double ensuite bedroom, plus snug/library/office/cabin with direct access

Port guest cabin can be configured as double, twin, or triple

Starboard guest cabin can be configured as single or double

Twin crew cabin

Laundry/utility/storage space

Main deck aft lobby with storage and day head/shower

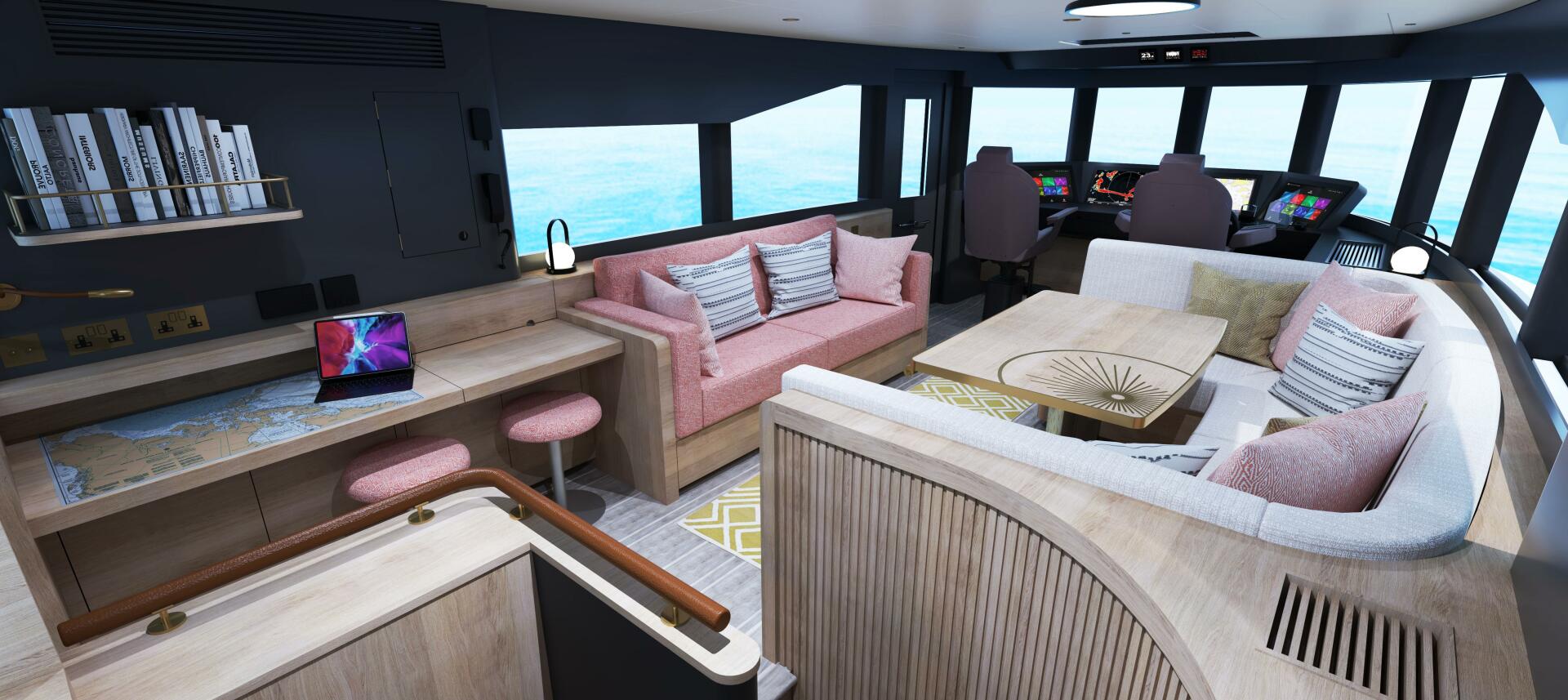

Open plan galley and large seating/dining area on main deck. Office/concealed bridge area forward.

Seating/dining area on bridge deck. Ships office/chart table. Bridge area forward.

Seating/dining area on main deck aft. Awning for shade. Servery/BBQ area.

Seating/dining/sunbathing area on main deck forward. Awnings for shade.

Seating areas on bridge deck forward and aft

External decks covered in Tesumo sustainable timer
