Listed at $7,300,000
Available for SaleHANNA94' 2019 Riva

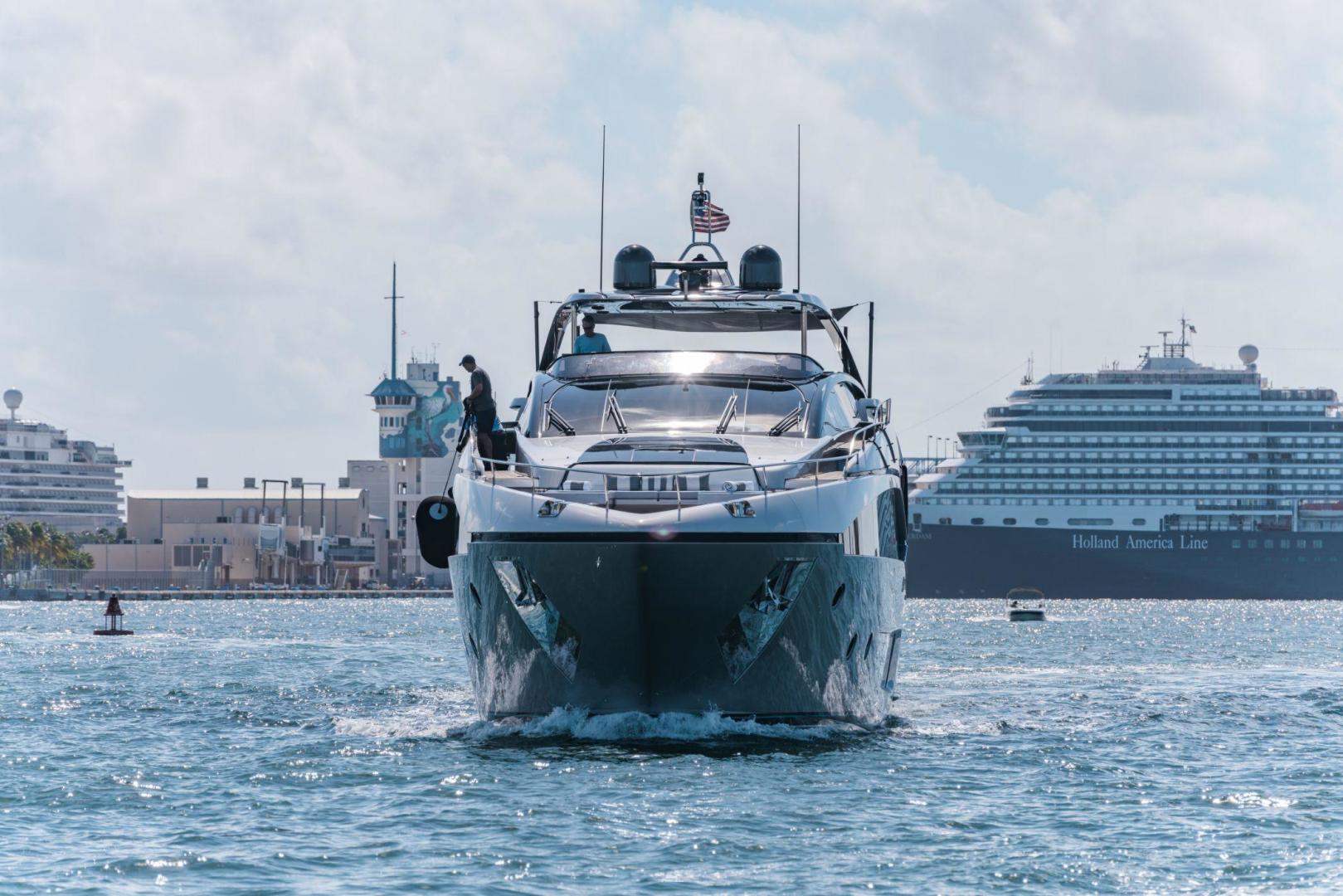

The stunning and sleek Riva 90 Argo, HANNA, catches the eye for more reasons than one. Designed in partnership by Officina Italiana Design (the studio founded by Mauro Micheli and Sergio Beretta) and Ferretti Group’s Product Strategy Committee (headed by engineer Piero Ferrari) and Engineering Department, this flybridge is an imposing sight. She is a premium quality, pedigree yacht that offers excellent performance and large volume.
The interior spaces include a relaxed salon with magnificent hull-side windows with stainless steel interior framing supports the superstructure and runs around the outside of the full-height glass windows. The spacious lounge is furnished with two lounge chairs, an L-shaped sofa and a TV mounted in a panel with a stainless-steel perimeter and mirrored surfaces. Beyond it is the dining area, with a large table and seats for eight people. A special touch is added by incorporating a panoramic balcony on each side near the windows.
Forward of the dining area is the generous full-beam master suite, with a king-size bed and comfortable lounge area. The ensuite features a double vanity and a spacious shower. The large windows throughout the suite offer natural light and a beautiful view.
A full-beam VIP suite and two center island queen staterooms are located on the lower deck, each with en-suite bathrooms. The crew quarters can accommodate up to four crew in two cabins.
HANNA’s wheelhouse features a state-of-the-art front bridge console, which is finished in leather and fitted with large navigation screens. This area also features a two-person leather seating area aft of the captain’s seat.
The hull is finished in Grey Metallic with a Black Boot stripe and a Teal Mist boot accent stripe.
26 North Yachts is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Fraser Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Specifications
| LOA: | 94' (29 m) |
| Beam: | 20' (7 m) |
| Hull Material: | Fiberglass |
| Fuel Capacity: | 2,298 gal (8,699 L) |
| Fresh Water Capacity: | 349 gal (1,322 L) |
| Flag: | Jamaica |
| Location: | Florida, Fort Lauderdale, United States |
| Build Year: | 2019 |
| Builder: | Riva |
| Model: | 90 ARGO |
| Type: | Motor Yachts |
| Cruising Speed: | 25 Knots |
| Max Speed: | 30 Knots |
| Engine Information: |
|
Details
SPECIFICATIONS
MAIN CHARACTERISTICS
Name: HANNA
Type: Motor Yacht
Builder: RIVA
Year: 2019
Yacht Model: 90 Argo
LOA (M/FT): 28.49 M 93’ 06”
LWL (M/FT): 23.10 M 75’ 09”
Beam (M/FT): 6.5 M 21’ 04”
Draft (M/FT): 2.13 M 7’
Gross Tonnage: 123
Displacement: 220,462 lbs Full Load
Hull Material: GRP
Hull Configuration: Planning
Superstructure Material: GRP
Flag: Jamaican
Port of Registry: Montego Bay
Naval Architect: Ferretti Engineering Department
Exterior Designer: Officina Italiana Design
Interior Designer: Officina Italiana Design
Main Engine: 2 x MTU 16V2000 M84 – 2,218hp
Speeds: 28 Max
23 Cruising
Range: 300 nm @ 22knots
Guest Accommodation: 8 guests in 4 staterooms
Crew Accommodation: 4 crew in 2 cabins
NOTEWORTHY FEATURES AT A GLANCE
• 23 knots cruising speed with a maximum speed up to 27 knots
• Zero speed stabilization with fins and SeaKeeper gyro stabilization
• Three spacious outdoor entertainment areas
• Vast on-deck owner’s suite with lounge and en-suite
• Accommodates 8 guests in 4 expansive staterooms
ACCOMMODATIONS
OVERWIEW:
Launched in 2019, Hanna is a premium quality, pedigree yacht that offers excellent performance and large volume. Her contemporary modern interior was inspired by the idea of combining sporty lines, forward thinking design with carefully chosen modern furniture and finished in beautiful satin Italian walnut.
ACCOMMODATIONS:
This exceptionally maintained 90 Argo is in impeccable condition and offers spacious accommodation for eight guests. The arrangement comprises an on-deck master suite, a VIP double and two guest cabins that can be configured as double or twin berths. Each stateroom features an en-suite.
LOWER DECK:
Forward of the dining area is a winding stairway with stainless handrails and glass siding that leads to the lower guest foyer and staterooms. Aft of the stairs is the full-beam VIP with a centerline, sole leather upholstered queen bed with drawers for storage. Forward of the stairs are two double cabins that can be converted to twin beds. Each guest room is faceted with modern furniture, a 32’ TV and entertainment system, ample closet space with additional storage under the beds, and an en-suite. All guest bathrooms feature Calcatta Austale marble floors and sinks.
MAIN DECK:
On the main deck, a large frame supports the superstructure and runs around the outside of the full-height glass windows. The spacious lounge covering almost 40m² is open to the sea and reaches heights of over 2.1 m. It is furnished with two lounge chairs, an L-shaped sofa, and a retractable TV. Beyond it is the formal dining area, with a large table and seating for eight guests. A special touch is added by incorporating a panoramic balcony on each side near the windows.
OWNER’S STATEROOM:
Forward of the guest stairway, owners are welcomed into their on-deck suite with large windows that allow natural light to beam through on both sides. Centerline is a queen-sized bed, framed in sole leather upholstery and stainless-steel polished details with a bed lifting system to allow for additional storage underneath. Lacquered nightstands with doors in sole leather and a glass top sit on each side of the bed. Matching storage furniture and large vanity is located on the starboard side along with a wardrobe with a mirror and ample space. The en-suite is set with Calcatta Australe Marble and his and her sinks, with lacquered walls.
FLYBRIDGE DECK:
Access to the flybridge is up the stairs from either the aft deck or pilot house. A second fibreglass varnished control station with up-down system for forward display, upholstered steering wheel, instrumentation, compass, and alarm lights sits forward near the pilot house entrance. An additional dining table and L shape sofa with upholstered cushions, two helm chairs, and floating furniture aft provides substantial space for entertaining. Side cabinets with electric opening system top, equipped with sink, 24V refrigerator, storage and electric grill are located opposite the dining table.
CREW ACCOMODATION:
The crew area is accessed from the main deck galley. The crew mess features an L-shaped sofa, teak table and crew kitchen. There are two crew cabins with pullman bed and private head for a total of 4 crew berths.
GARAGE
The aft garage features an electrohydraulic platform. She houses a Williams SportJet 395 as well as a SeaDoo RXT X300 JetSki
CONSTRUCTION
Hull Material: GRP
Hull Type: Warped hull with spray rails and aft deadrise 12°
Superstructure Material: GRP
Decks Material: Fibreglass floor laid in teak
Motor Hull Type: Raised Pilot House
Motor Hull Sub Type: Flybridge
Number of Decks: 3
CAPACITIES
Gross Tonnage: 123 GT
Displacement Tons: 85 tonnes
Fuel Capacity (GRP Tank): 8,700 Litres 2,298 Gallons
Fresh Water Capacity: 1,320 Litres 349 Gallons
Water Makers (per day): 6,354 Litres 1,400 Gallons
Grey Water: 535 Litres 141 Gallons
Black Water: 535 Litres 141 Gallons
MAIN MACHINERY
Main Engines: 2 x MTU 16V2000 M84 2218hp (Upgrade over std)
Engine Hours: Port: 715 hrs (Recorded 11/2/2022)
Starboard:715 Hrs (Recorded 11/2/2022)
Propulsion Type: V-Drive transmission
Engines Exhaust System: Underwater silenced exhausts
Engine Ventilation: Electric ventilation fans (2)
GENERATORS & ELECTRICITY
Generators: Main electric generator (27kW) Auxiliary generator (19kw)
Generator Hours: Port: 1,240 hrs (Recorded on 11/2/2022)
Starboard: 1,290 hrs (Recorded on 11/2/2022)
Shore Power: 400V with cable
Shore Power Transformer: Three/monophase isolation transformer 400V-230V
Batteries: Group of auxiliary service batteries 24V
Group of batteries for engine starting 24V
Lighting throughout 24V
Main generator battery 12V
Battery Chargers: Automatic battery charger (2) for auxiliary service batteries 24V
Automatic battery charger for engine batteries 24V
Generator Start: Auxiliary generator starting battery 12V
AUXILIARY MACHINERY
Steering System: E-Steer Electro-hydraulic steering system
Bow Thruster: Hydraulic bow thruster (50hp), Electric bow thruster control panel with
joystick
Stern Thruster: Yes, 32HP
Stabilizers: 2 x Seakeeper Gyro Stabilizers (Series 16 and Series 9) ($165,000 option)
Stabilizer fins underway and zero speed (2)
Humphree Trim stabilizers (interceptors)
Bilge System: Electric pump for bilge drainage (engine room)
Electric pumps (4) (1 engine room, 3 accommodation area)
Emergency bilge suction pipe (engine room) through engine cooling pump
Multipurpose electric pump (bilge, grey water, black water)
Fuel Filters: Double Racor fuel filters (2) for engines
Fresh Water Makers: Seafari Watermaker 1400 gpd ($17,000 option)
Hot & Cold Circulation Pump: 230V
Hot Water Boilers: Water heaters 50lt 230V (2)
Sea Water Pumps: Sea water firefighting system with chain wash down
WC's (toilets/bidets): Electric WC System with fresh water
Sanitary Vacuum System: Interchangeable automatic electric pump for black and grey water tanks pumping down
Air Conditioning: Mediterranean air conditioning system
Galley Ventilation & Extraction: Electric
NAVIGATION & COMMUNICATION SYSTEMS
Navigation Bridge: Black box integrated system (radar, plotter, GPS, echo-sounder, monitoring)
Monitors: SIMRAD 16" LCD/LED monitor (4)
Auto Pilot: Automatic pilot with rudder angle indicator interfaced with plotter/GPS
Echo Sounder: Yes
GPS: Colour LCD Plotter/GPS
Search Lights: Adjustable searchlight controlled from the helm station and upper bridge
VHF Radiotelephones: Class D VHF radio telephone with DSC and separate antenna
DECK MACHINERY & EQUIPMENT
Anchors: 2 x Polished stainless-steel anchors 90Kg
Anchor Chains: 2 x Galvanised steel chain, 120m 13mm diameter
Anchor Windlass System: Electric anchor winches 3000W (2) with controls at the helm station, at bow and on the flybridge
Cranes: Number, Brand, Model, Max Load
Warping Capstans: Electric winches for stern warping 1700W 24V (2)
Garage: Electro-hydraulic stern garage fibreglass hatch
Swim Platform: Fiberglass swimming platform with integrated starboard side stair, teak floor and equipped with up & down system
Stern Boarding Gangway: Concealed stainless steel electro-hydraulic gangway with stanchions and teak flooring
Swimming Ladder: Concealed stainless steel electro-hydraulic swimming ladder built into the swimming platform
Spotlights: LED spotlights
Garage: Electric winch for tender lifting/launching
Electro-hydraulic hatch
GRP flooring with non-slip surface
Paint Exterior: Custom color for hull, deck and aft ($295,000 option)
SAFETY, SECURITY, & FIRE FIGHTING EQUIPMENT
CCTV: Colour camera (2) CCTV
Fixed Firefighting System: Emergency pull handles for engines and generators for diesel break (automatic with fire protection system)
FM200 fire extinguishing system in the engine room with automatic / manual control
Firefighting Equipment: Fire-fighting hose (2) at bow and stern
Extinguisher for garage with fire port from the cockpit
Smoke Detection: Yes
Life Rafts: Life rafts for 10 people (2)
Lifejackets: Inflatable life jackets (20)
Life Rings: Life ring with luminous float and line
ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS
Video Equipment: KVH SAT KVH Tracvision HD7
TVRO: US SAT Receivers in guest cabins
Audio Equipment: A/V Package premium sound external
Light Management: Dimmers throughout
Main Salon: 40” LED TV 49” LED TV Mini Hi-fi CD/DVD & Bluetooth
Master Stateroom: 49” LED TV Mini Hi-fi CD/DVD & Bluetooth
VIP Stateroom: 49” LED TV Mini Hi-fi CD/DVD & Bluetooth
Guest Staterooms: LED TV 32" Mini Hi-fi CD/DVD & Bluetooth
Flybridge Deck: Terrestrial TV antenna. VHF antenna (2). Radar antenna. Running and anchor lights. Watertight loudspeakers connected to the stereo in the lounge (2).
Pilot House: Acoustic alarm for water in bilge. Automatic pilot with rudder angle indicator interfaced with plotter/GPS.
Crew Mess: TV 24” A/NTSC USA with CD/DVD/MP3
GALLEY EQUIPMENT
Cooking Equipment: Oven, cooktop, microwave and cooker hood.
Oven/Cookt Top: Miele H2890 B ROK/ Miele KM 7594 FL
Refrigeration/Freezer: GE GZS221 Side-by-side
Dishwasher: Miele G 6880 SCV1
Other: Corian sink with mixer tap, Corian Worktop, Wine Storage/Chiller (salon)
OTHER EQUIPMENT
Sun Awnings: Sundeck area manual Bimini with Carbon Poles, Glass HT roof in lieu of electric Bimini top, Manual awning at Bow.
TENDERS & TOYS
Tenders: Williams SportJet 395
Jet Skis: SeaDoo RXT X300 JetSki
Toys: 2 x Seabobs
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
