Sunny Seajay | 70' 2021 Ocean Alexander

GENERAL:

• Vinylester resin with marine grade structural foam, High density allows for high temperature resistivity and particular advantage in thermal and acoustic insulation.
• Reinforced collision bulkhead
• Fiberglass with infusion lamination manufacturing technology
• Painted exterior surface with professional grade Alexseal polyurethane paint and epoxy based primer. Highest gloss and color retention compared with gelcoat or other paint brands. Guarantee color match by Alexseal. No fading, yellowing and minimum maintenance with no annual compound necessary on exterior paint. For first 3 years just use soap and water (Unique OA standard feature, not an optional upcharge like competitors).
• 2" elliptical 37 4L Stainless steel handrails & stanchions, main deck. 1-1/2" on FB. Elliptical conforms better to human grip than traditional round rails. Provides greater “grip strength" for safety and comfort (Unique OA feature)
• All exterior hardware to be S/S 316 or to manufacturer requirements
• Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound, and noise transmission. Some of these techniques include multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible Isolation mounts. Ultimately resulting in vibration/sound levels that are industry leading and at times 1/2 to 1/10 of SO-6954 sound levels (Unique OA feature)
• Weather-tight bulkheads with further sound and temperature Insulation
• Marine grade aluminum beam. Provides greater rigidity, reduces movements and “abrasive” sounds while underway. Also allows for one of the largest uninterrupted glass/window spans In the Industry. (Unique OA feature)

HULL / BOTTOM:

• Rub rail with S/S Insert
• Three coats of Pettit primer, hi-build epoxy barrier coat and covered with three coats of Pettit self-polishing bottom paint (Unique OA feature, optional on competitors)
• Bronze through-hull fittings

DECK / PILOTHOUSE:

• Chain locker in bow with hinged access
• Removable swimming ladder
• White non-skid fiberglass decks
• Port and starboard boarding gates
• Ventilation hatch fwd. trunk top
• Fiberglass staircase from deck to flybridge
• Fiberglass swim platform
• Composite hard-top with aluminum beam support (OA standard feature, often a $100,000 competitive option)

MAIN ENGINES:

• Twin Volvo IPS1350 engines with 24-month Volvo Penta warranty. Three control stations: FB, PH, & Starboard docking station with complete engine Instrumentation
• Electronic engine controls at PH and FB, and starboard aft docking Station

GENERATOR:

• 2x Kohler 24 KW genset includes 5-year warranty
• Generator resiliently mounted and installed with sound shield & vibration dampener (Unique OA feature)
• Generator exhausts with fuel / water and gas/ water separator
• Generator exhausts to be water-drop type per “Centek’, “Marine Exhaust Co.” or equal. Reduces noise & vibration

WINDLASS / MOORING:

• Electric winclass, RC12
• Vertical electrical rope winches at aft deck
• Anchor 88 Ibs. w/ 150ft anchor chain (3/8° HT) & chain stopper
• Chain counter

OTHER:

• Volvo Penta Interceptor Electronic Vessel Control w/automatic Trim Assist for fully automatic ride control
• Stainless steel rails on sides of engines
• Fire extinguisher system with engine-shutdown feature
• Manually controlled adjustable Detta-T® fans for engine exhaust located on superstructure instead of hull side.
• Intake / exhaust fans with de-mister to eliminate moisture from the intake airflow to keep dry in machinery spaces
• Pantograph windshield wipers & washes w/intermittent function
• Kahlenberg heavy duty air horn
• Stidd mechanical helm seats in F/B
• Stidd mechanical helm seat in Pilothouse
• Pantograph door on port and electric salon door
• Teak decked custom fiberglass swim platform with remote operated 1500lbs capacity 316L Stainless Steel hydraulic lift

FRESH WATER SYSTEM:

• Stainless Steel water tank
• Fresh water wash down, at bow & stem
• Dockside water connection
• One 28-galion high efficiency water heater with high density fiberglass Insulation

BILGE / DISCHARGE:

• 24V shower Sump pumps
• Lighted engine compartment
• Automatic bilge pump - with manual and automatic switches including high water alarms
• Lighted bilge (Unique OA Feature)
• Common drainage system for bar sink, shower, bilge & exterior deck

FUEL SYSTEM:

• Aluminum fuel tank with sight gauges and tested to International Standards 33CFR 510(a) w/ high and low fuel level alarm system
• Filler for fuel tanks on both sides. (Unlike others where fueling is only possible on 1 side. This unique OA feature allows for concurrent and faster fueling & negates need to move boat to complete fueling)

NAVIGATION PACKAGE

(Standard versus competitors’ optional, savings valued at $100,000 +):

• Garmin 8600 Series Black Box with 17° screens [Two screens - lower station, Two screens - upper station)
• Garmin GRID remote input device ot Stidd Helm (FB and PH)
• Garmin 120W open array fantom radar
• Garmin Autopilot GHP Reactor
• Card Reader
• Garmin VHF at Heim (F8 and PH)
• Garmin AIS with NMEA GPS
• Garmin Sonar Module with Transducer
• Garmin Marine Camera (2x engine room, 3x aft deck)
• KVH TracVision HD7 with DIRECTV receivers
• Ritchie Compass 5"

AC / DC SYSTEM:

• AC outlets 120V
• AC distribution panels with remotely operated hydraulic magnetic circuit breakers
• DC distribution panels with electronically programmable circuit breakers
• AGM Batteries with -15C to 40C operating temp and low 3% per month self-discharge rates
• Battery paralleling system switch between service and engine
• Service battery switches
• Engine battery isolation switches with paralleling
• Generator battery Isolation switches with paralleling
• GFI(120V) AC outlets In potential “wet” areas. In addition, entire boat is dual protected vic ELC! Octuplex breckers. (OA is unique In the Industry to provide dual protection GFCI & ELC)
• Shore power receptacle at transom w/80’ cable master with Iso-Boost 100A transformer (OA Is unique In making this a standard vs, optional to clean & boost questionable shore power to better protect sensitive equipment onboard,)
• Forward shore power, receptacle, and 50" cord
• Octoplex NMEA 2000 Network electrical control system. Based on aerospace technology for remote activation, control and status reporting of AC and DC breakers. Monitors power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication and usage information with touch screen monitor that is user reconfigurable. Brown-out configurable control through auto load shedding is included where designated equipment (e.g. navigation and other essential systems) remains powered-on while automatically switching other systems off. Octoplex NMEA 2000 Vessel system monitors main access doors, tank level, bilge level and battery current, voltage and temp. (Unique OA standard feature, not an optional upcharge Ike competitors)

BATTERY CHARGERS:

• 60 AMP for house bank
• 30 AMP for engine
• 30 AMP for bow thruster w/option

BONDING SYSTEM:

• The vessel's bonding and grounding systems shall Include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers, and pump bodies connected to the bonding strap

LIGHTING:

• 24V LED lights (Specially tuned color temperature for Ocean Alexander)

AIR CONDITIONING:

• Dometic systems throughout, rated for “Extreme Tropical Climates” with reverse cycle for operation down to 40°F water temp. (OA standard equipment, not an optional upcharge like competitors)
• Refrigerant type is accepted worldwide under the Montreal Protocols
• Where possible A/C exits from custom made ceiling panels hidden from view. Shortens AYC ducting thus Improving efficiency and speed of cooling by over 20%, Also reduces dB reading by over 7 B (Design cues from OAT 20)

OTHER:

• Labeled Vimar switches and outlets
• Custom designed storage in lazarette

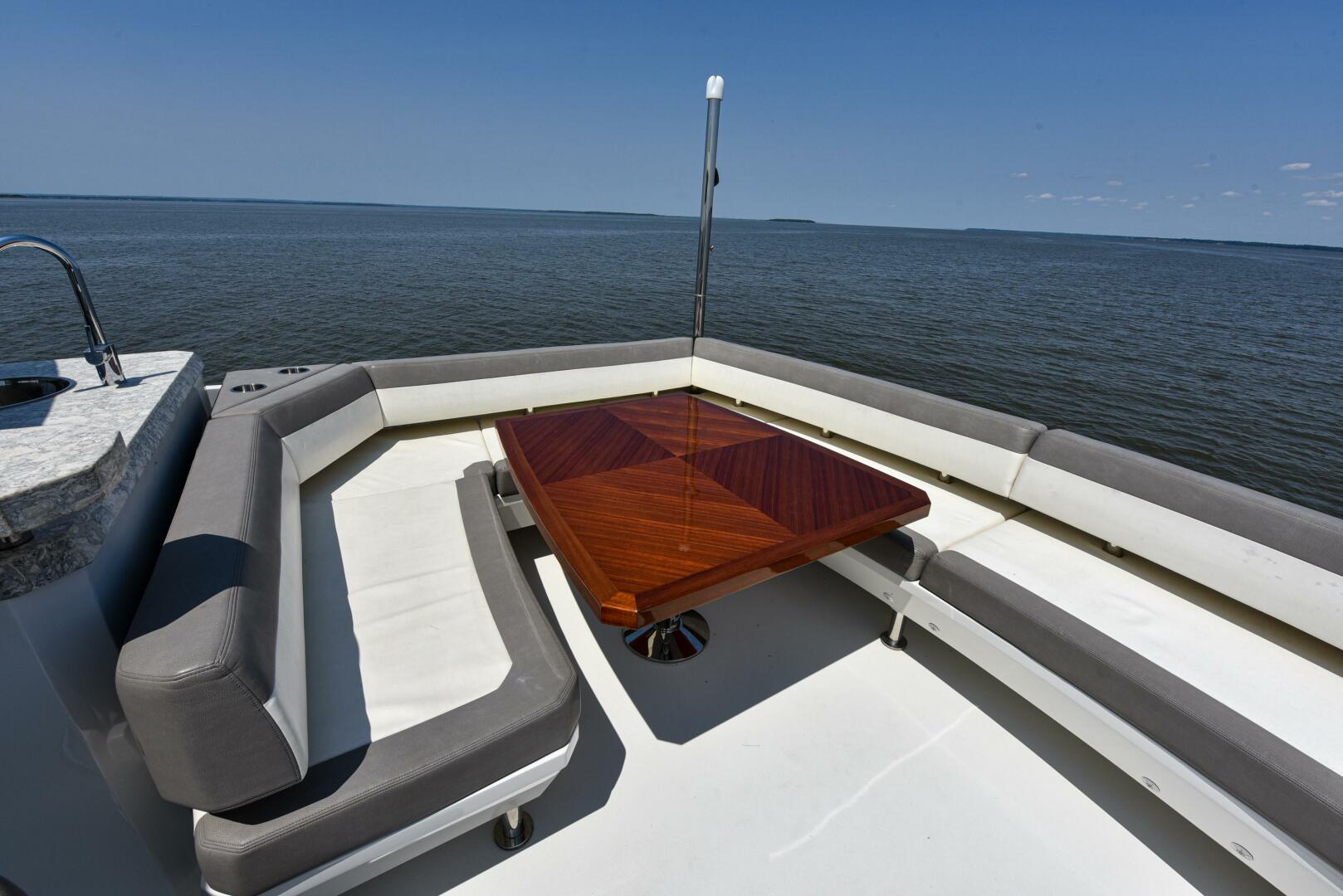

• Oversized Bow storage area under sunpad

SALON:

• Evan K Marshall custom design salon furniture and sofa. Sofa Includes concealed drawers for intelligent use of space and increase storage
• Removable ceiling panels
• Wood paneling and cabinetry
• Enlarged windows in salon with custom engineered solution allowing for industry leading window expanse. Incorporate (where possible) aircon outlet from ceiling, provides unobstructed view from outside.

MASTER STATEROOM:

• King-sized berth with upholstered headboard
• Two nightstands
• Chaise lounge on port side with vanity
• Private head with stall shower
• Safe in master stateroom
• Cedar-lined, full-height hanging locker w/ auto lighting "Enlarged windows with custom engineered solution Incorporating composite beams and “sandwiched glass” construction technique from classed vessels", Allows of 38% greater visibility and Incoming light

HEADS:

• HansGrohe faucets for sink and shower
• Fiberglass stall shower w/ one-piece glass door. Industry leading seamless one-piece shower stall design provides long term protection against moisture, water intrusion behind the shower panels that can cause foul odors and water damage.
• Teema toilet system throughout

GALLEY:

• Wood panel and cabinetry with positive-latch doors provides containment of stored objects while underway
• Storage cabinets with fully dovetailed solid wood drawer construction
• Franke Sink with Franke Pull out faucet
• Fisher Paykel Refrigerator
• 30" Jenn-Air Microwave
• 30" Jenn-Air electric induction cook top
• Whirlpool garbage disposal
• 30° Jenn-Air electric convection oven
• Bosch dishwasher
• 15" Jenn-Air Trash compactor

INTERIOR DECOR:

• Evan Marshall designed interior pilot station and display pods with matching wood and designer fabrics. Ergonomically designed and laid out to enhance pilot experience/performance
• Stained wood paneling and cabinetry
• European door handle
• Stainless steel hardware
• Satin varnish for Interiors
• Positive latch drawers & cupboards
• Fabric covered walls
• Oversized hanging lockers
• European washer/ dryer
• Air extraction in each head

EXTERIOR:

• Hardtop with dedicated custom 5/5 ladder
• Windows all fixed and flush
• Venturi
• Flip open hatch, bridge to pilothouse
• Electric Stainless sliding salon door with safety light curtain that senses obstruction. Also includes “foot-kick button” control for operation when both hands full with food trays/other Items.
• Largest flybridge area in its class with Ocean Alexander's “cab-fwd" design, the flybridge steering station is moved fwd to allow for better visibility and lengthens the total flybridge area available for entertaining.
• Non Skid deck throughout
• Teak tables at aft deck/FB/bow seating areas
• Boarding gates on port & std. sides
• Backlit OA logo

TURN KEY (Unique OA Standard feature):

• Fenders, lines, flare kit, fire extinguishers, bell, safety first aid kit
• 2 sets of bed linens on all berths with pillows and towels
• Dinner china for 8 guests including dinner plates, soup bowls, salt & pepper shakers
• Flatware for 8 guests Including steak knife, dinner knife, fork, spoon and dessartfreaspoon, serving spoons & fork
• Napkins, water glasses, and wine glasses
• Galley cookware/pans, toaster, chef knives, cutting boards, coffee machine, Iron

VESSEL SUPPORT (Unique OA Standard feature):

• Orientation: Prior to deliver, the owner and/or captain is provided with dockside orientation on the operation of vessel systems by Ocean Alexander personnel.
• Customer Support: OA customer support is on-call 24/7 to support owner and crew.

INTERIOR WOOD SELECTION:

• White-Washed Satin Oak

FABRIC COLOR SCHEMES

• Chrome

STONE COLOR SCHEMES:

• Light

OTher

• Crew quarters with dedicated bunk and wet head and electric toilet
• Cambria floor in heads in lieu of Amtico
• Sliding starboard guest berths, convert two singles to a single queen with additional hidden nightstand
• Heated master head floor
• Seagull water purifier for Galley sink and ice-makers (ADEX design award winner w/ filtration to 0.1 microns & EPA certification for microbiological purification)

Hydraulic “Zero Speed” Stabilizer Package

• Sidepower Vector Fin stabilizer technology - DAME 2013 award winner
• Patented Curve fins with 50% less resistance than traditional fin shapes
• Any/Zeia speed range stabilization
• 2nd Kohler 24 KW Generator

Volvo IPS Dynamic Positioning w/ Joystick

• Includes 37 station Joystick
• Clear Wake Exhaust
• Built-In line cutter
• "Prop Speed” on props
• Joystick driving In addition to docking
• 3rd station Bow Thruster Control (If optional bow thruster is selected)

Inverter Package

• Upgrade 60AMP charger to inverter/charger (3000W/70AMP)
• Blue-Power full function programmable controller

Sones Audio/Visual System:

• 5 zone Sonos system allows streaming music and stereo sound for zones with TV.
• Includes these areas: Salon, FB, Aft FB, Galley, Aft Cockpit, and Bow Seating area
• Includes Apple TV In Salon, MSR, VIP, port and starboard quest staterooms
• Includes the following equipment Installed at factory
• MSR32" LED TV with DVD, Satellite receiver, Amplifier system w/ Subwoofer and music streaming ability
• Salon 50" LED TV with DVD, Satellite receiver, Amplifier system w/ Subwoofer and music streaming ability
• VIP 28” LED TV with Satellite receiver
• Starboard 28” LED TV with Satellite receiver
• Port 19” LED TV with Satellite receiver
• Camera for night vision (FLIR) for thermal vision and low light

Dometic Deluxe package

• includes heater coil for entire AC system for operation In below 40°F water
• IBEX award winning alr purifier (99% reduction in VOC gases/mold/bacteria, /pollen/grains)
• Sea Recovery 450G/Day watermaker
• FB air conditioning 24,000 BTU
• Electric bow thruster with variable speed. Comes with control at lower and upper stations
• 200' Chain (upgrade from 150’) + Ultra Anchor (Patented design w/ 400% more holding power)
• Upgrade (4x) monitors from 17” to 24”
• Electric helm seat (each) In lieu of standard mechanical seat. Not recommended for exterior Installation
• Onboard Intranet, driven by commercial-grade 4G SIM card capable WI-FI router, Allows outside DS 4G Internet card and /or internal intranet net connection via supplied [Pad to systems monitoring Garmin and other onboard equipment apps.
• GulfCoast Fuel polishing system based on US Military Abrahams-M1 Tank design
• Dockside water filtration to eliminate taste & odors from Marina water supply

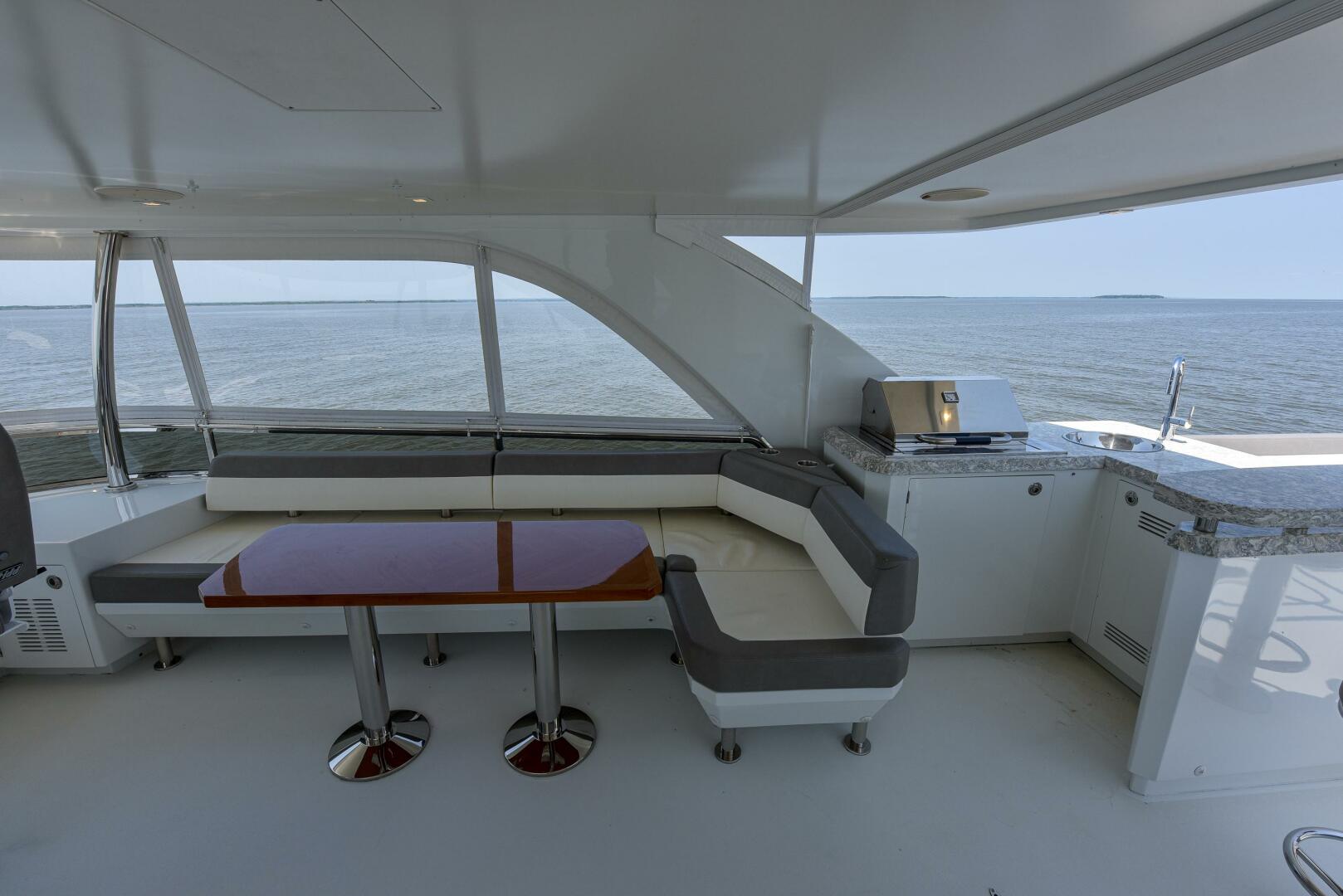

• Flybridge rear seating w/ custom hi-low table convertible to sunpad T
• Teak Decking Package:
• (1) Main Deck (aft deck to midship first step)
• (2) steps from Aft Deck to Flybridge
• (3) Swim step teak
• (4) Steps from Swimstep to Aft Deck
• High output LED underwater lights (three at stem, fwo on each side at master)
• Aft deck custom fiberglass cabinetry with sink and refrigerator/ice maker
• Flybridge: Manual awning w/custom stainless-steel poles and marine-grade mesh fabric, includes built-in storage for poles.
• Custom exterior protection canvas and windshield mesh cover and mesh screens added to all opening port lights throughout vessel
• ACR searchlight (1 million peak candlepower) and recessed rear flood lights on radar arch and Aft Cockpit
• Spare Parts package: Includes: Blige pump, LED light. Pencil zinc, Engine/ Generator filter, Wiper blades, Touch up paint, Fuses, Engine manuf. Spare parts kit, Generator manuf. spare parts kit, Breakers, Sump pump box, Float switch, Hydraulic gas-strut, Vimar outlet, GF outlet, Vimar switch, Wood veneer}
• Flip Open Hatch for Aft deck to FB
• Flybridge Wet bar with sink and refrigerator/icemaker
• S/S transom gates from aft deck to swim step

Sunny Seajay — Custom 2021 Ocean Alexander 70e

Updated 1/5/24

Along with the extensive options list from Ocean Alexander, Sunny Seajay was

outfitted with top-of-the-line equipment throughout. Here’s the list of custom

extras that identify why Sunny Seajay is the best 70’ Ocean Alexander on the

water.

• ElectroSea - Clearline Marine Growth Prevention System
• Dedicated engine room air conditioning system
• Double Raycor Fuel Separator/Filters on both main engines
• Double Raycor Fuel Separator/Filters on both generators
• Bow shore power with 40’ cord
• Interconnect link so bow shore power cord can be linked to aft shore power cord when extra length is required
• Custom 100 Amp to 2x 50 Amp splitter when 50 Amp only service is available
• Hydraulic Zero-speed active yacht stabilization system with 2"? 23kW generator
• Volvo IPS Dynamic Positioning System
• Extensive bow strake redesign and implementation that eliminates 80% of spray over the decks, with a corresponding increase in boat speed
• FLIR System
• Fuel polishing system
• Sea Recovery Watermaker upgraded to 1800 gallons per day capacity
• Dockmate remote control docking system
• Forward and aft access city water connections
• Refrigerator and freezer drawers added to salon opposite galley
• Seagull water purifier for Galley sink and ice makers
• Dockside water filtration to eliminate taste & odors from marina water supply
• Back-up 24V water pump
• Tankless back-up water heater
• Heated master head floor
• Soft close Tecma toilet lids
• Flybridge air conditioning
• Additional Stidd helmsman chair in the pilot house
• Additional Stidd helmsman chair in the flybridge
• Second VHF radio set, mirrored at the flybridge helm station
• OctoPlex switching system interfaced to and operational on Garmin screens
• Stabilized and upgraded FLIR system
• Star Link satellite communications system
• Kahlenberg automatic fog horn controller in pilot house and on flybridge
• Individual TV/Internet monitors in every cabin
• Custom canvas seat and cushion covers throughout
• Power sun shades in the pilot house, main salon, and master stateroom
• Custom StrataGlass enclosure with zipper openings on flybridge
• Stainless steel safety handrails added to logical grab points throughout
• Foldable and storable boarding stairs
• Custom stainless steel rail chafe guards fitted near major anchoring and
• docking cleats
• 2x 8-Person Viking Rescue-Me life rafts in custom stainless steel ‘fall-away’
• brackets
• Custom ‘floors’ built-in bilge to support spare parts bins
• All batteries replaced in May 2023
• Extensive spare parts inventory

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
